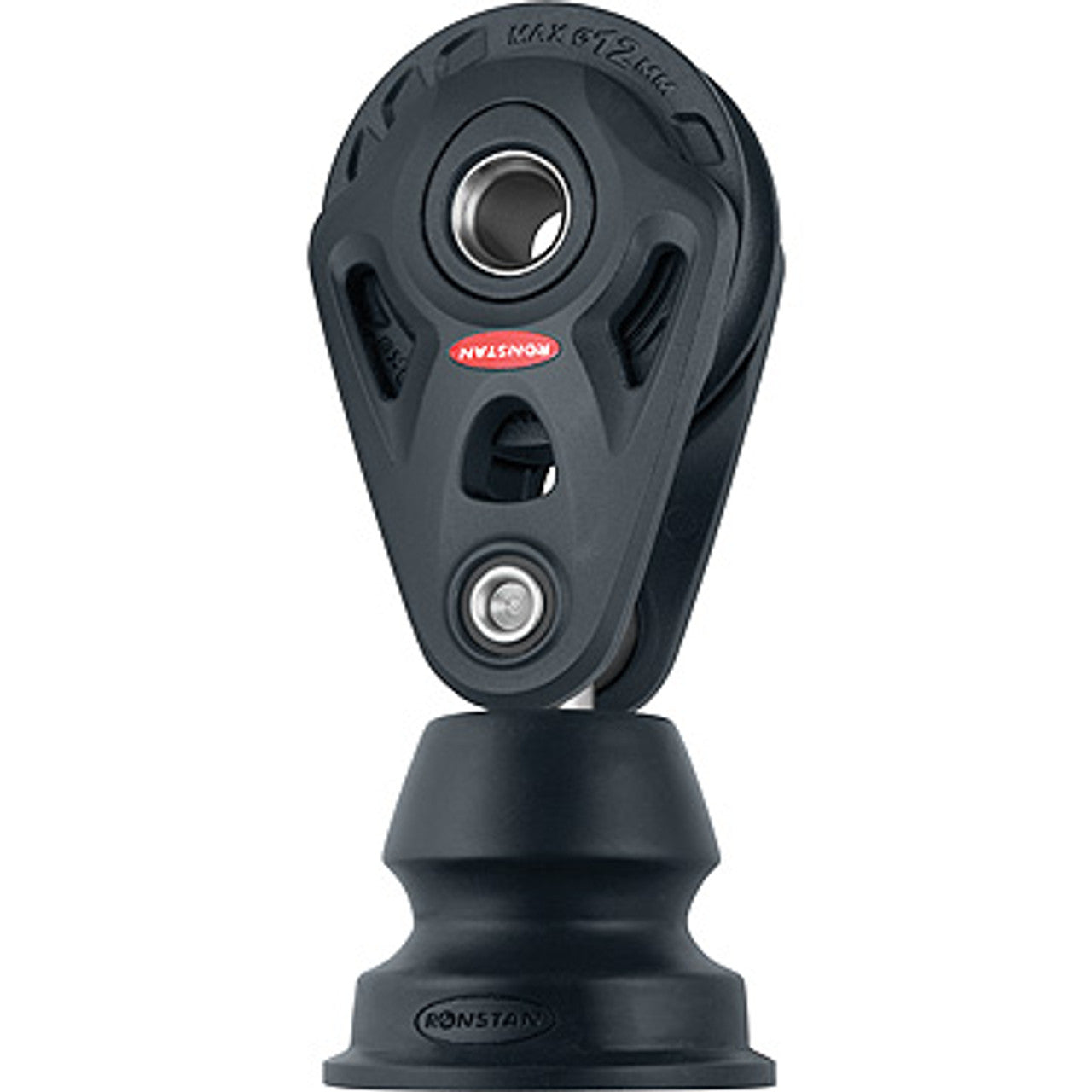

Ronstan Series 60 Core Block, Stand-Up

Manufacturer part #: RF64140

Class leading performance and sleek, contemporary styling

Excellent dynamic and high static load performance

Less than half the friction of the nearest competitor

Swivelling head post for full 3-axis articulation

Strong precision cast padeye base

Resilient rubber stand-up boot prevents clatter & block falling down when not loaded

Central hub hole can be used as a becket take-off or tie-up point

Mount with 4 x 6 mm (1/4") fasteners (not supplied)

Core Blocks„¢ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

Universal Bearing
Dynamic and high static load performance

The Ronstan Universal Bearing incorporates our proven 2-stage bearing system

Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.

Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.

Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.

Alloy cheek plates
Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.

Shackles are high quality forged grade 316 stainless steel.

Fully articulated stand-up
Stand-up models have a low profile linkage that provides full rotation and articulation. A high strength precision cast padeye minimises the footprint and a dedicated rubber boot ensures the block is held upright when not loaded.

Applications

Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 12 m (40 ft)

Various control line applications on larger yachts

Alloy sheave models are available for use with wire

Materials

Sheave: U.V. stabilised Acetal or anodised aluminium (AW models)

Cheek plates: Aluminium alloy

Post & hub: Grade 316 stainless steel

Padeye: Grade 15.5PH stainless steel
