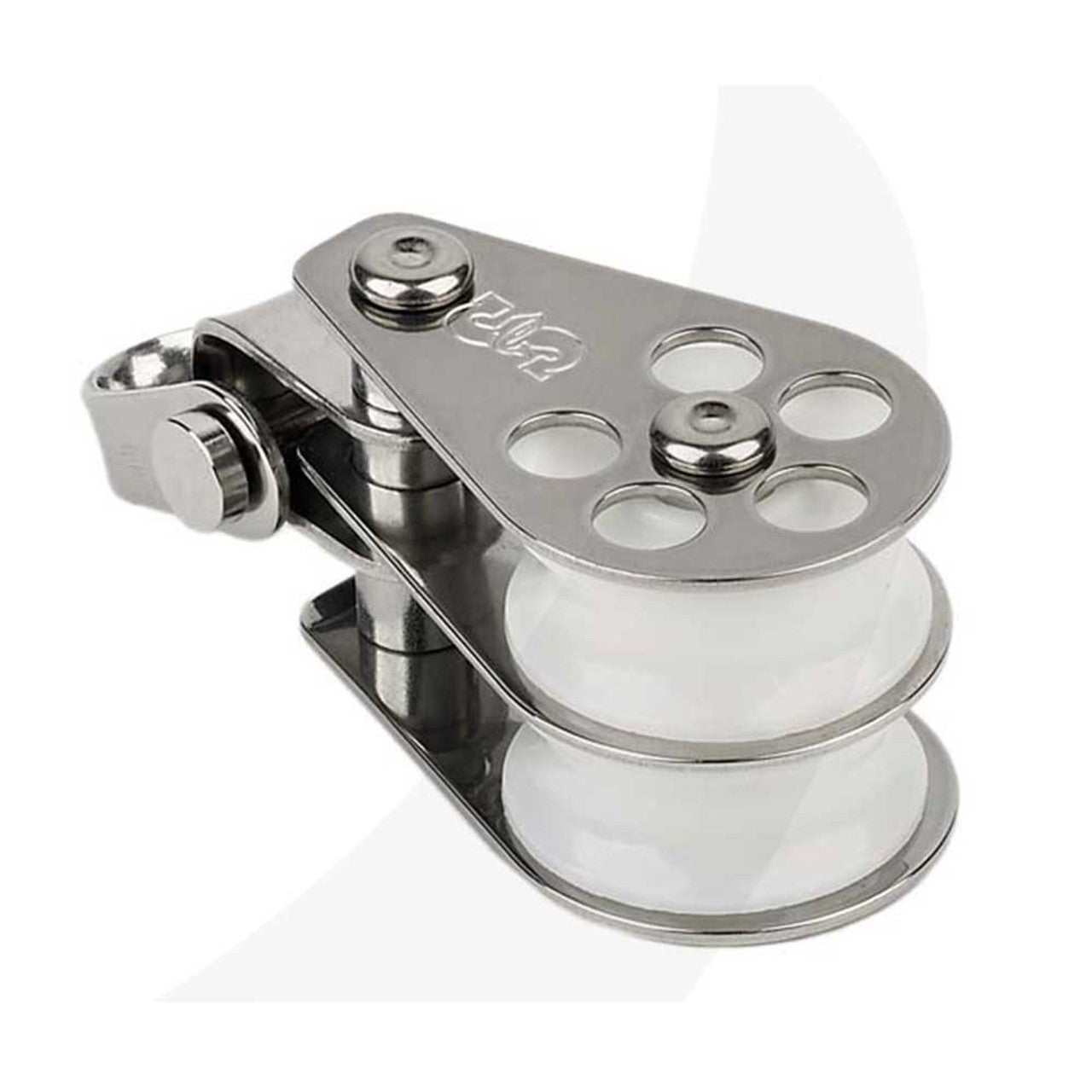

Schaefer Double, Upset Shackle
2 Series Blocks are perfect for vangs, outhauls, backstays, cunninghams and other control blocks on a wide variety of boats. .
Schaefer's 8 Series Stainless Blocks add strength and brilliance to your deck. Featuring Delrin sheaves, forged stainless steel D shackles, bolted construction for strength and Stainless Steel cheeks polished to a high luster add beauty and confidence to your boat.
| Features | American | Metric |
|---|---|---|
| Description | Double Block with Upset Shackle | |
| Length | 3 9 /32 in | 83 mm |
| Width | 1 3/16 in | 30 mm |
| Overall Thickness | 1 1/8 in | 28 mm |
| Sheave | 1 1/16 in | 27 mm |
| Sheave Width | 3/8 in | 9 mm |
| Maximum Line | 5/16 in | 8 mm |
| Pin | 3/16 in | 5 mm |
| Safe Working Load Stainless | 900 lb | 410 kg |
| Safe Working Load Ball Bearing | 500 lb | 225 kg |
| Weight | 3 oz | 83 g |
Cheeks are constructed of tumbled and polished stainless steel for maximum resistance to corrosion and cracking common to other plastic designs. Sheaves are made of tough, high impact Delrin, and turn on polished, stainless steel spacers that prevent the cheeks from binding the sheave even under heavy load.
Manufacturer part number: 02-24
