Schaefer | SKU:
SCH37-15

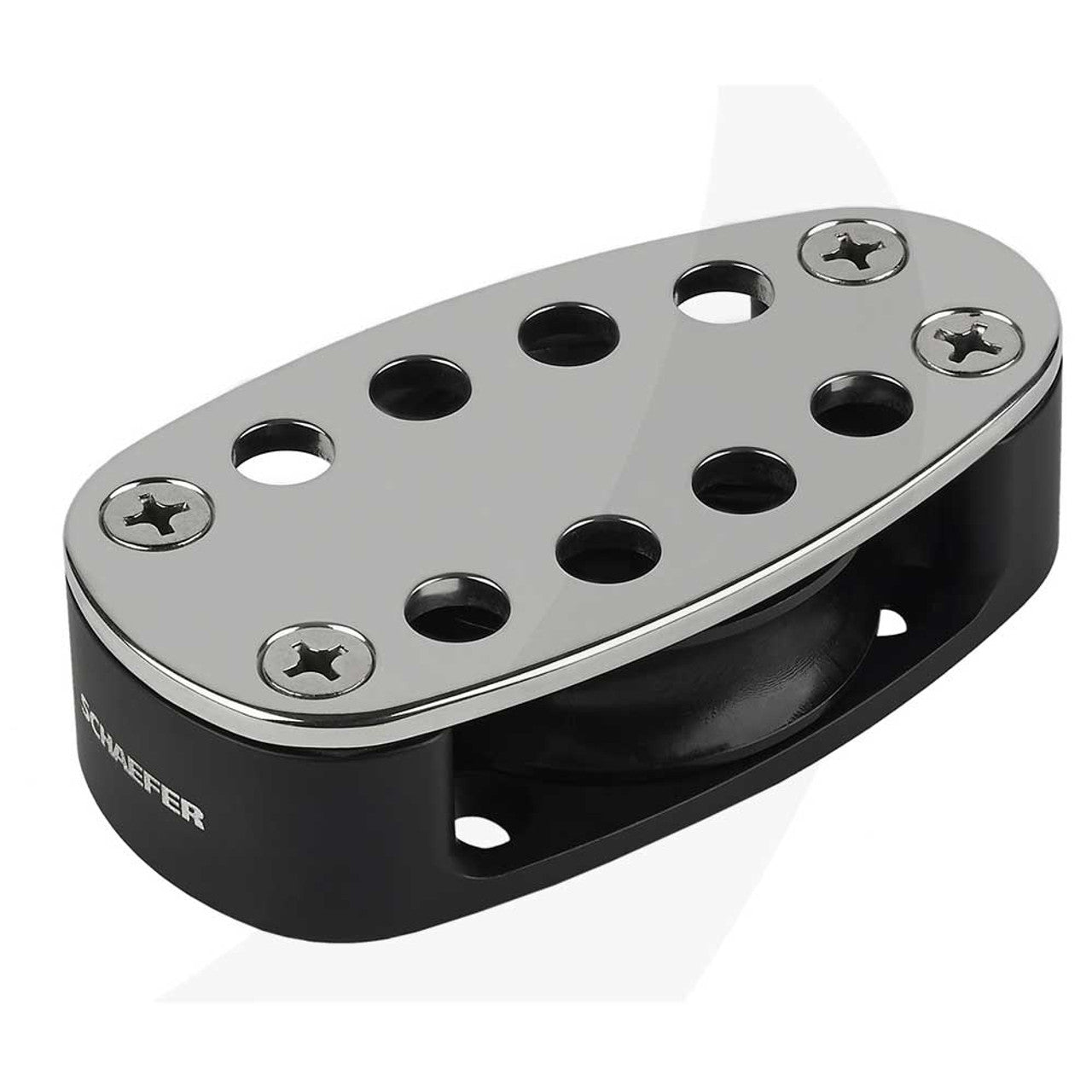

Schaefer Foot Block, 2 3/8"(60mm) OD, Single, Stain
Regular price
$772.10
Unit price
Availability: Please call to check availability. Not available for expedited shipping. Usually Ships Within 20 Days
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Schaefer Foot Block, 2 3/8"(60mm) OD, Single, Stain
Regular price
$772.10
Unit price
Manufacturer part #: 37-15
Note: 37-13, 37-15 contain non-ball bearing Delrin™ sheaves.
Manufacturer part #: 37-15
With some of the highest loads on any boat, Foot Blocks must be engineered to withstand some of the highest loads on any boat. With that, Schaefer offers two unique designs. The new M-Series utilizes Computer machined aluminum in conjunction with Torlon™ Rollers and Delrin™ Ball Bearings. The more traditional series of Foot blocks is offered with either an Aluminum or Stainless Steel Top plate for an elegant, yet incredibly strong design. This design uses a computer machined aluminum base as well as an aluminum sheave with ball bearings and our Nomex™/Teflon™ self-lubricating bearing.
| Features | American | Metric |
|---|---|---|
| Description | Single Foot Block | |
| Length | 4 5/8 in | 118 mm |
| Width | 2 15/32 in | 63 mm |
| Height | 1 1/4 in | 32 mm |
| Sheave Ø | 2 3/8 in | 60 mm |
| Max Line | 3/4 in | 19 mm |
| L.O.A. | 33 in | 10 mm |
| Displacement | 12000 lb | 5455 kg |
| Sail Area | 520 sq ft | 48 mm |
| Fastener (4) | 1/4 FH | 6 mm |
| Safe Working Load | 2500 lb | 1136 kg |
| Weight | 14 oz | 397 g |
Manufacturer part #: 37-15
With some of the highest loads on any boat, Foot Blocks must be engineered to withstand some of the highest loads on any boat. With that, Schaefer offers two unique designs. The new M-Series utilizes Computer machined aluminum in conjunction with Torlon™ Rollers and Delrin™ Ball Bearings. The more traditional series of Foot blocks is offered with either an Aluminum or Stainless Steel Top plate for an elegant, yet incredibly strong design. This design uses a computer machined aluminum base as well as an aluminum sheave with ball bearings and our Nomex™/Teflon™ self-lubricating bearing.
