Schaefer | SKU:
SCH504-82

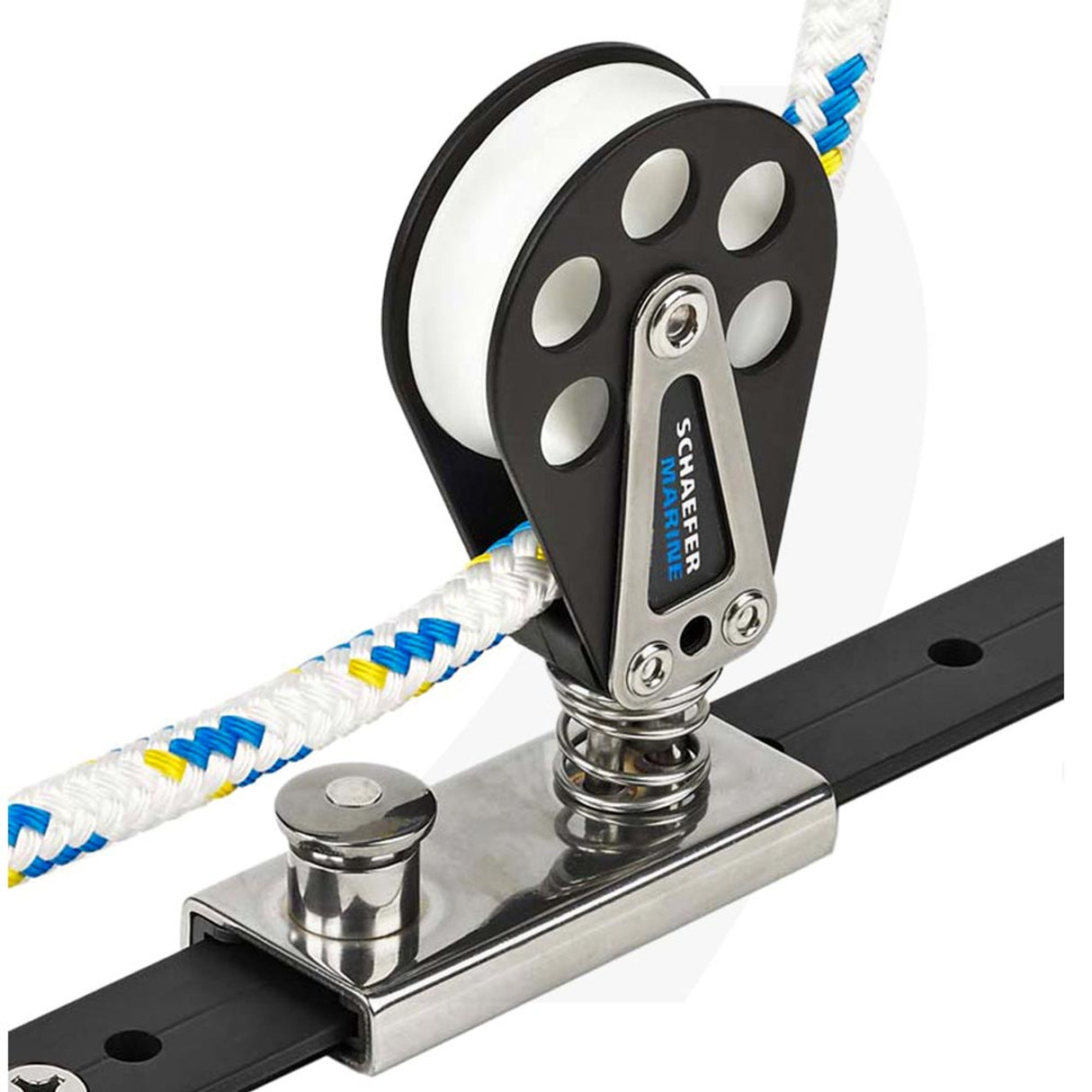

Schaefer Genoa Lead, 1"x1/8"(25x3mm) Lined
Sale price
$192.39
Regular price
$219.75
Unit price
Unavailable
Availability: Please call to check availability. Not available for expedited shipping. Usually Ships Within 20 Days
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Schaefer Genoa Lead, 1"x1/8"(25x3mm) Lined
Sale price
$192.39
Regular price
$219.75
Unit price
Unavailable
Manufacturer part #: 504-82
Note: Replacement liners for 1 in = 25-287. Replacement liner for 1-1/4 in = 25-286.
Manufacturer part #: 504-82
Spring loaded blocks offer a wide flexibility in sheeting angles allowing for up to a 45° lead variation to each side of the track. Spring Cap design fully supports blocks under any conditions. 1 in and 1-1/4 in versions feature polyethylene liners held captive within the slide allowing for years of trouble free and friction free service. Choose from brilliant Stainless Steel or Hardcoat Anodized Aluminum cheeks both using UV resistant Delrin™ sheaves.Our New M66-92 features an Aluminum Sheave with Torlon™ Rollers and Delrin™ Ball Bearings for smooth sheeting. Center Hub may be used as a becket to create a 2:1 jib sheet purchase.
| Features | American | Metric |
|---|---|---|
| Description | Genoa Lead Aluminum | |
| Track Size | 1 x 1/8 in | 25 x 3 mm |
| Length | 3 in | 76 mm |
| Width | 1 1/4 in | 31 mm |
| Height | 4 5/32 in | 105 mm |
| Bearing Height | 2 7/32 in | 56 mm |
| Sheave Ø | 2 in | 51 mm |
| Max Line | 7/16 in | 11 mm |
| L.O.A. | 27 in | 8 mm |
| Displacement | 5000 in | 2270 mm |
| Sail Area | 315 sq ft | 29 mm |
| Safe Working Load | 1750 lb | 795 kg |
| Weight | 7 oz | 198 g |
Manufacturer part #: 504-82
Spring loaded blocks offer a wide flexibility in sheeting angles allowing for up to a 45° lead variation to each side of the track. Spring Cap design fully supports blocks under any conditions. 1 in and 1-1/4 in versions feature polyethylene liners held captive within the slide allowing for years of trouble free and friction free service. Choose from brilliant Stainless Steel or Hardcoat Anodized Aluminum cheeks both using UV resistant Delrin™ sheaves.Our New M66-92 features an Aluminum Sheave with Torlon™ Rollers and Delrin™ Ball Bearings for smooth sheeting. Center Hub may be used as a becket to create a 2:1 jib sheet purchase.
