Schaefer | SKU:
SCH81-50
Schaefer Gudgeon Strap And Pin Assembly, J/24
Regular price
$351.50
Unit price
Availability: Please call to check availability. Not available for expedited shipping. Usually Ships Within 20 Days
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.

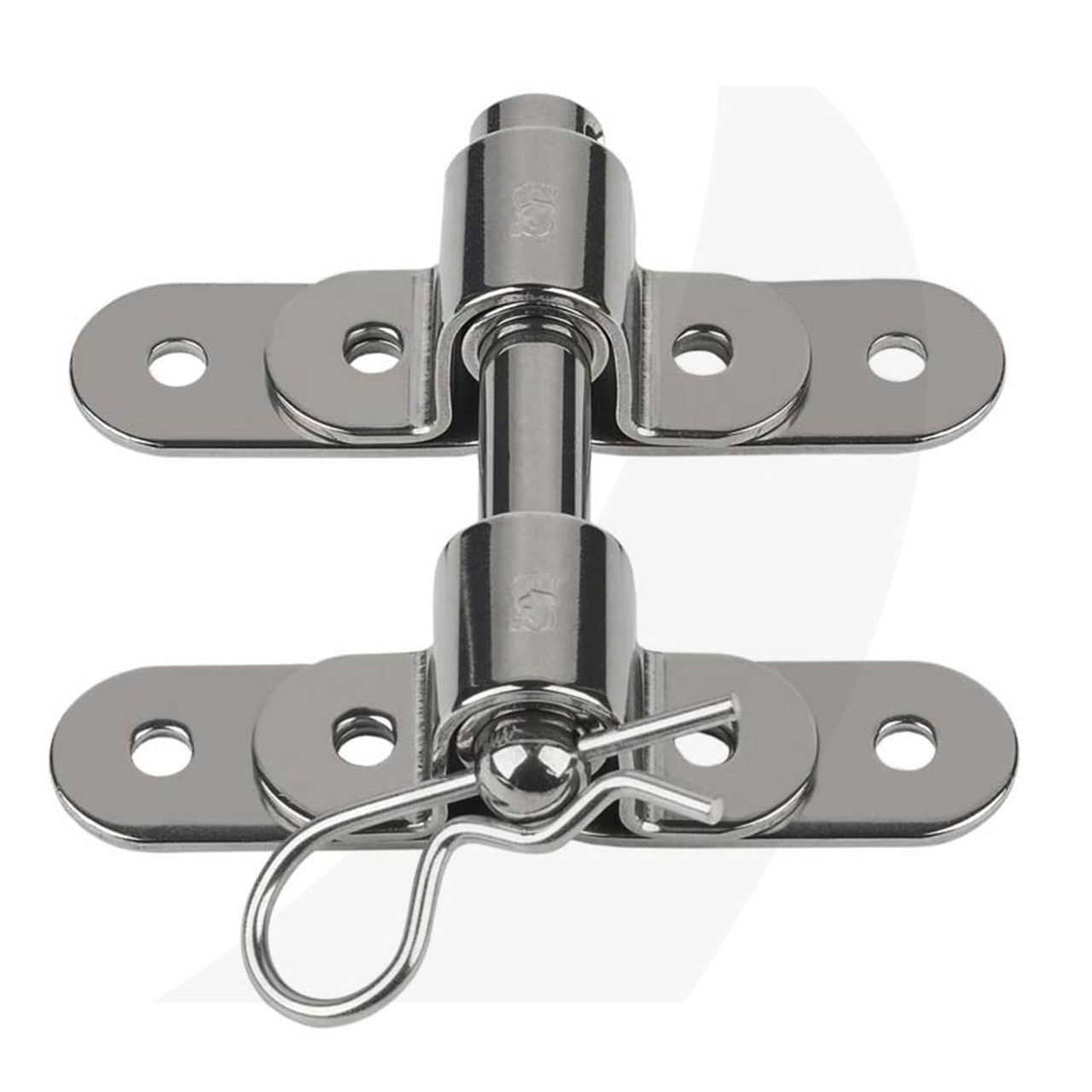

Schaefer Gudgeon Strap And Pin Assembly, J/24
Regular price
$351.50
Unit price
Manufacturer part #: 81-50
81-50 includes (2) 81-46 (1) 81-49
Manufacturer part #: 81-50
Schaefer Medium-Duty Pintles and Gudgeon components are most familiar as "J/24 type" with separate pins and welded pintle straps contained between an upper and lower gudgeon strap. This high strength, easily removed design is excellent for trailerable boats.
| Features | American | Metric |
|---|---|---|
| Description | J/24 Assembly | |
| Boat Size | Up to 25 ft | Up to 7.6 m |
| Pin Ø | 1/2 in | 13 mm |
| Pin Length | 3 7/8 in | 98 mm |
| Strap Thickness | 1/8 in | 3 mm |
| Strap Length | 4 1/4 in | 108 mm |
| Strap Width | 1 in | 25 mm |
| Fasteners | (8)1/4 in RH | (8) 6 mm RH |
| Weight | 8 oz | 227 g |
Manufacturer part #: 81-50
Schaefer Medium-Duty Pintles and Gudgeon components are most familiar as "J/24 type" with separate pins and welded pintle straps contained between an upper and lower gudgeon strap. This high strength, easily removed design is excellent for trailerable boats.
