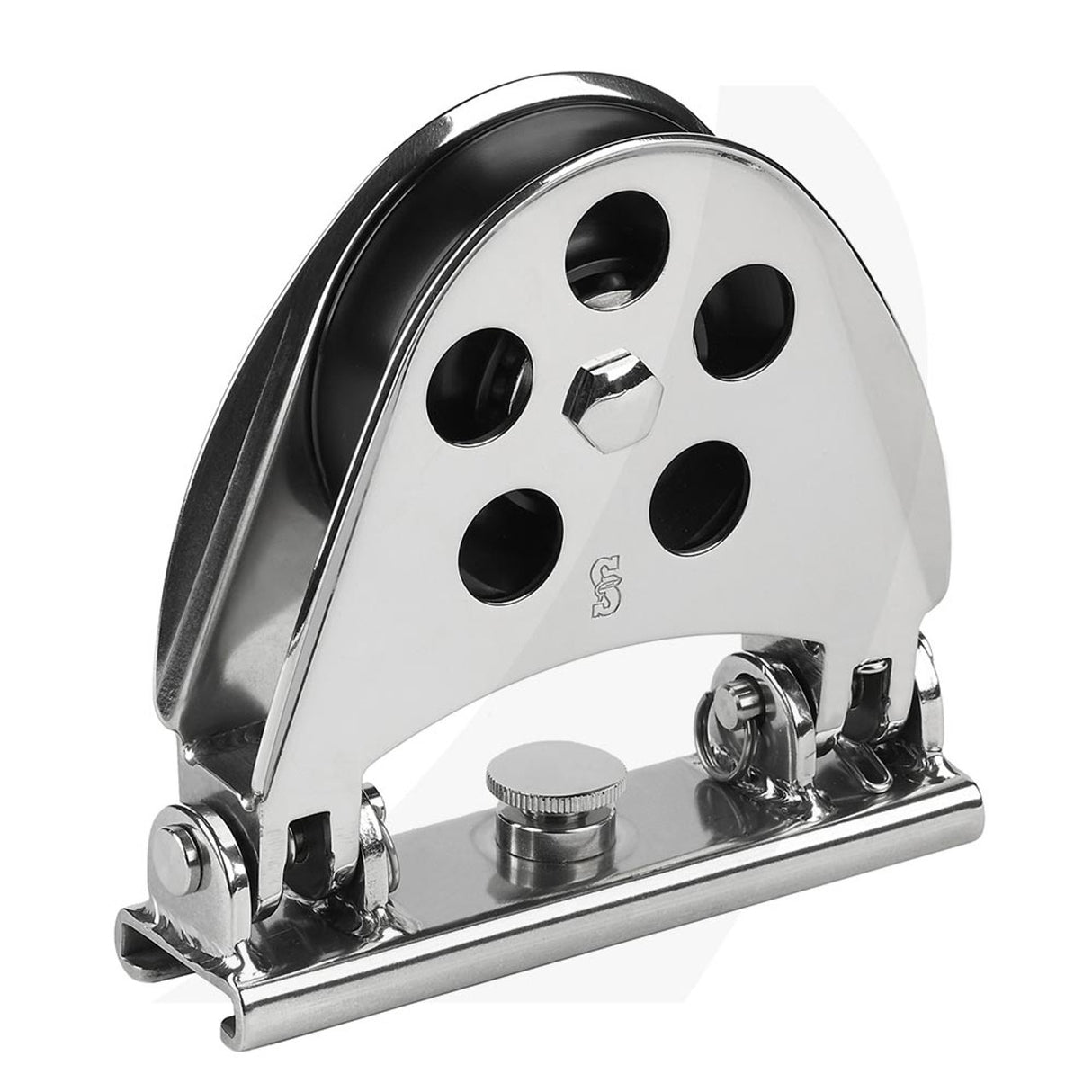

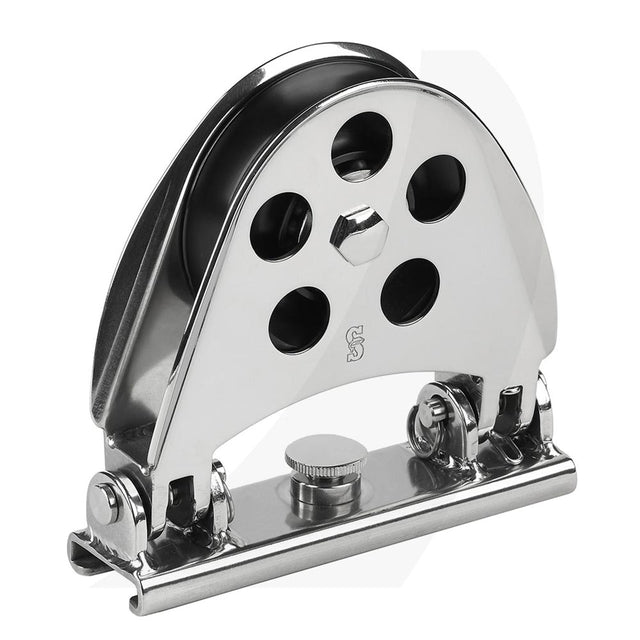

Schaefer Half-Moon/Alum. Shv.
Manufacturer part #: 32-33-UC
| Features | American | Metric |
|---|---|---|
| Description | Half-Moon Aluminum | |
| Track Size | 1 1/4 x 3/16 in | 32 x 5 mm |
| Length | 5 1/2 in | 140 mm |
| Width | 1 5/8 in | 41 mm |
| Height | 5 7/32 in | 140 mm |
| Bearing Height | 2 3/32 in | 54 mm |
| Sheave Ø | 3 1/4 in | 83 mm |
| Max Line | 3/4 in | 19 mm |
| L.O.A. | 38 in | 11.5 mm |
| Displacement | 18000 in | 8182 mm |
| Sail Area | 715 sq ft | 66 mm |
| Safe Working Load | 5000 lb | 2270 kg |
| Weight | 2 oz | 964 g |
Note: 50-011 is spring for 32-33-UC
Manufacturer part #: 32-33-UC
This rugged, off shore design provides a low winch lead while spreading sheet loads over several track fasteners for maximum strength. Set pin location in the center of the block to prevent snagging and accidental release. Designed to articulate up to 45° to either side of the track, Half-Moon lead blocks are often used to provide a proper lead angle to foot or turning blocks near the cockpit. Stainless, bolted construction provides a brilliant finish, and allows complete disassembly for inspection or maintenance.
