Schaefer | SKU:
SCH32-17
Schaefer Half-Moon Hinged Fairlead, 2 3/8"(60mm) Alum Shv
Regular price
$606.00
Unit price
Availability: Please call to check availability. Not available for expedited shipping. Usually Ships Within 20 Days
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.

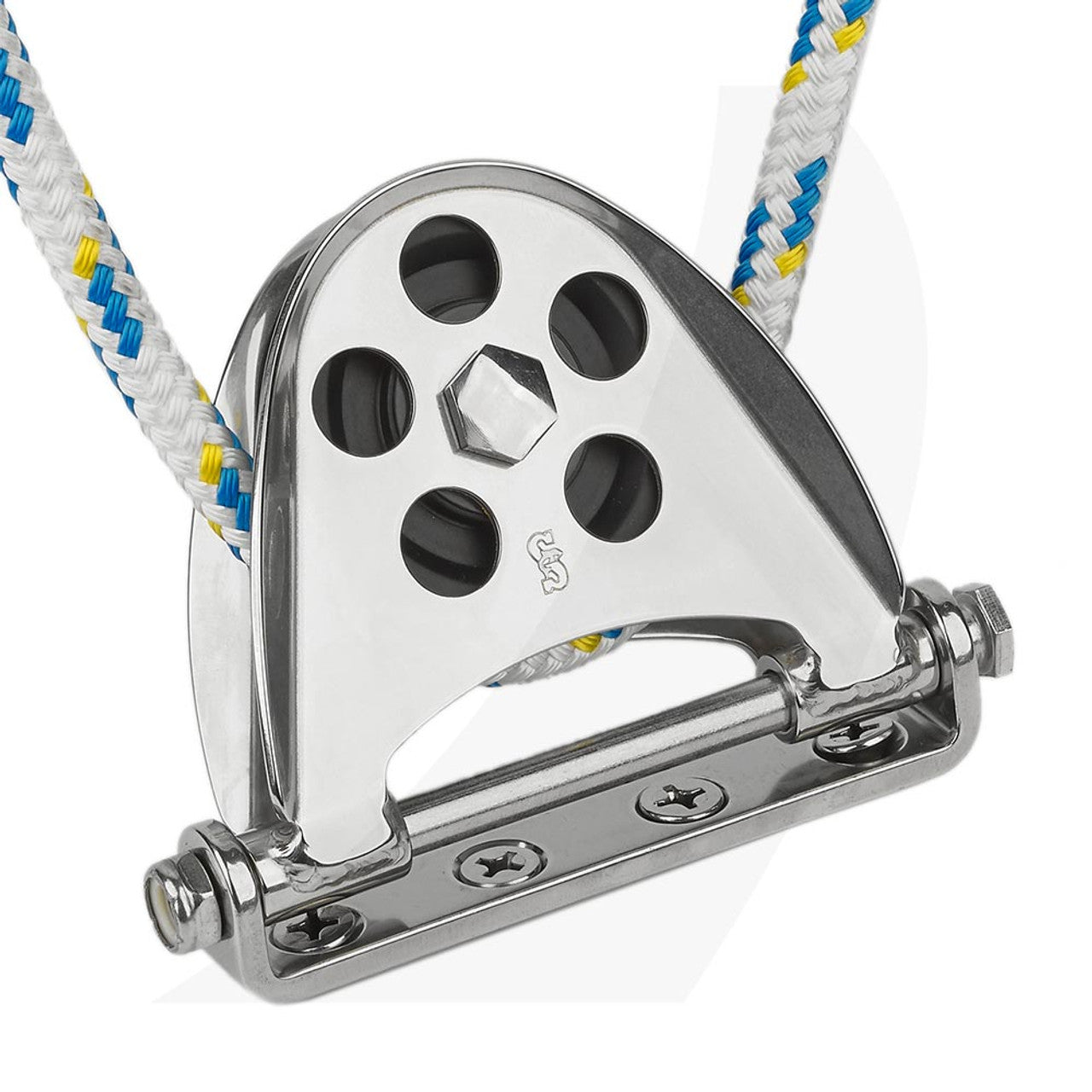

Schaefer Half-Moon Hinged Fairlead, 2 3/8"(60mm) Alum Shv
Regular price
$606.00
Unit price
Manufacturer part #: 32-17
* Max wire = 3/16 in (5 mm)
Manufacturer part #: 32-17
Fixed/Hinged Fairlead Blocks Extremely low profile keeps control lines and halyards close to the deck. Open Delrin™ ball bearing race design guarantees low friction and easy maintenance. Choose from either fixed or hinged models.
| Features | American | Metric |
|---|---|---|
| Description | Fixed Fairlead / Ball Bearing | |
| Length | 3 5/16 in | 100 mm |
| Width | 3/4 in | 19 mm |
| Height | 3 3/16 in | 97 mm |
| Sheave Diameter | 2 3/8 in | 60 mm |
| Max Line * | 3/8 in | 10 mm |
| Bearing Height | 1 7/16 in | 37 mm |
| Fastener (2) | 1/4 in RH | 6 mm |
| C/C | 3 15/16 in | 84 mm |
| Safe Working Load | 3000 lb | 1361 kg |
| Weight | 14.5 oz | 411 g |
Manufacturer part #: 32-17
Fixed/Hinged Fairlead Blocks Extremely low profile keeps control lines and halyards close to the deck. Open Delrin™ ball bearing race design guarantees low friction and easy maintenance. Choose from either fixed or hinged models.
