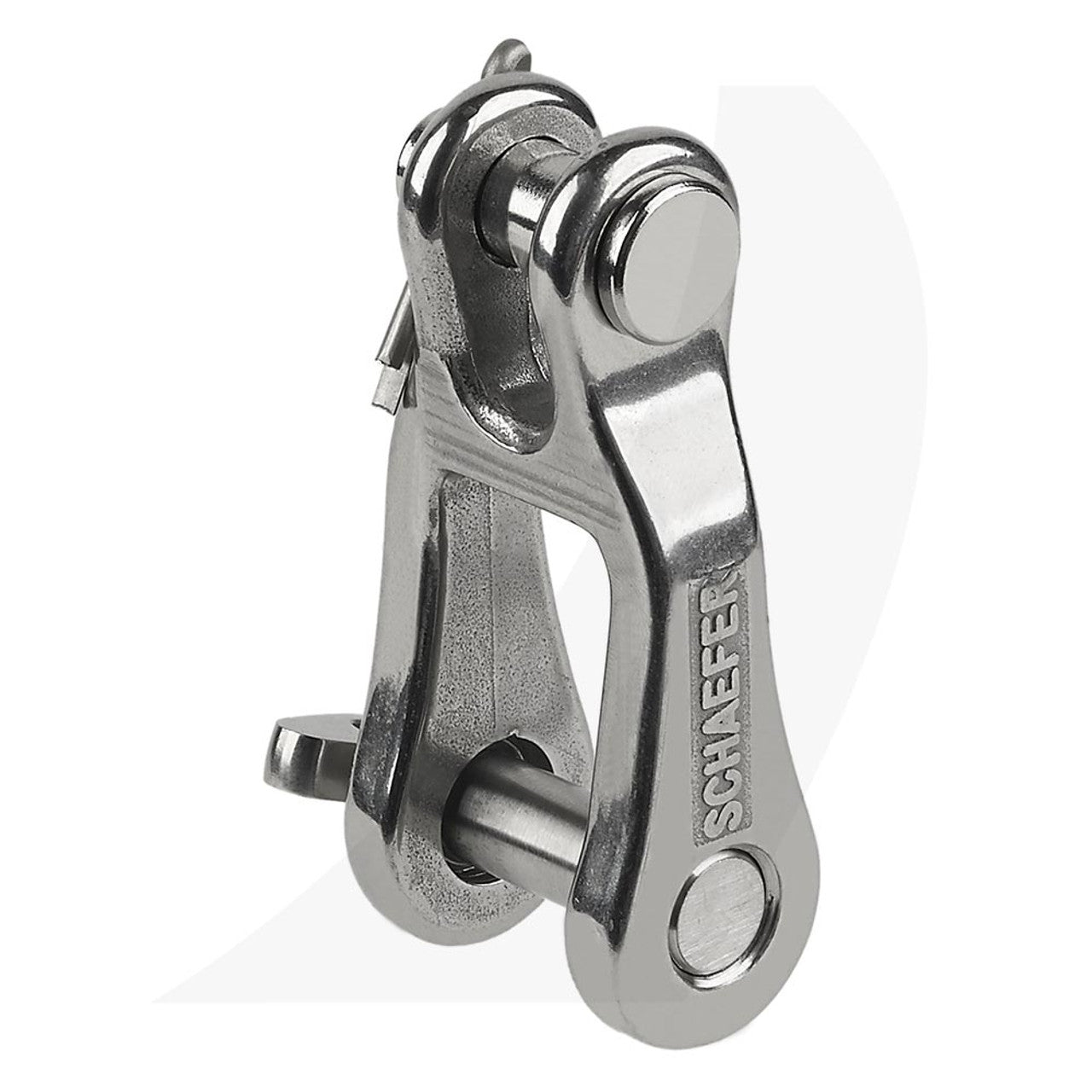

Schaefer Halyard Shackle, Inv Cast, 3/16"(5mm) Wire
| Features | American | Metric |
|---|---|---|
| Description | Investment Cast Wire Shackle | |
| Max Line Wire Ø | 3/16 in wire | 5 mm line |
| Pin A | 7/16 in | 11 mm |
| Pin B | 3/8 in | 10 mm |
| Length | 1 3/16 in | 30 mm |
| Width | 3/4 in | 19 mm |
| Safe Working Load | 4500 lb | 2045 kg |
| Weight | 6 oz | 170 g |
Double threaded shackle pin design allows removal of the headboard with only one unthreading, yet prevents the pin from being accidentally withdrawn.
Unique pin recess hold is cast into one of the jaws, allowing full headboard clearance when the pin is unthreaded. A second unthreading allows you to remove the pin entirely.
Manufacturer part number: 93-80
