Schaefer Removable Eye Deck, Complete Kit
Availability: Please call to check availability. Not available for expedited shipping. Usually Ships Within 20 Days
Shipping and Delivery
Enjoy free shipping on qualifying orders of $145 or more delivered within the 48 contiguous United States. Alaska, Hawaii, Puerto Rico, and other U.S. territories are excluded.
Delivery for qualifying free-shipping orders takes 8 to 10 business days.
Free shipping does not apply to:
- Orders containing only clearance items
- Customized special orders made to your detailed requirements
- Sails and boats
- Long tracks, spinnaker poles, whisker poles, and large tubes
- Oversized or heavy items, including items that require less-than-truckload (LTL) freight shipping
Standard Shipping
- UPS and FedEx Ground: Delivery usually takes 2 to 5 business days for in-stock orders.
- USPS: Allow an additional 3 business days beyond the standard shipping time.
- Saturday delivery: UPS and FedEx deliver on Saturdays only for overnight shipments sent on Friday. Additional charges may apply.
Oversized Items and Freight Shipping
Oversized items, such as whisker poles, spinnaker poles, and tracks longer than 8 feet, require freight shipping. The estimated shipping cost is $500, depending on the destination.
For freight deliveries, provide a commercial address, such as the marina, yacht club, or boatyard where your sailboat is located. The recipient must sign for the shipment upon delivery.
International Orders
International customers are responsible for all applicable import duties, fees, and taxes.
| Features | American | Metric |
|---|---|---|
| Description | Removable Eye/Assembly | |
| Eye Width | 5/8 in | 16 mm |
| Eye Height | 5/8 in | 16 mm |
| Eye Stock | 1/4 in | 6 mm |
| Length | 3 in | 76 mm |
| Width | 3 in | 76 mm |
| Fasteners | (4) 1/4 in FH | (4) 6 mm |
| C/C A | 2 in | 51 mm |
| C/C B | 2 in | 51 mm |
| Safe Working Load | 2250 lb | 1020 kg |
| Weight | 9.5 oz | 269 g |

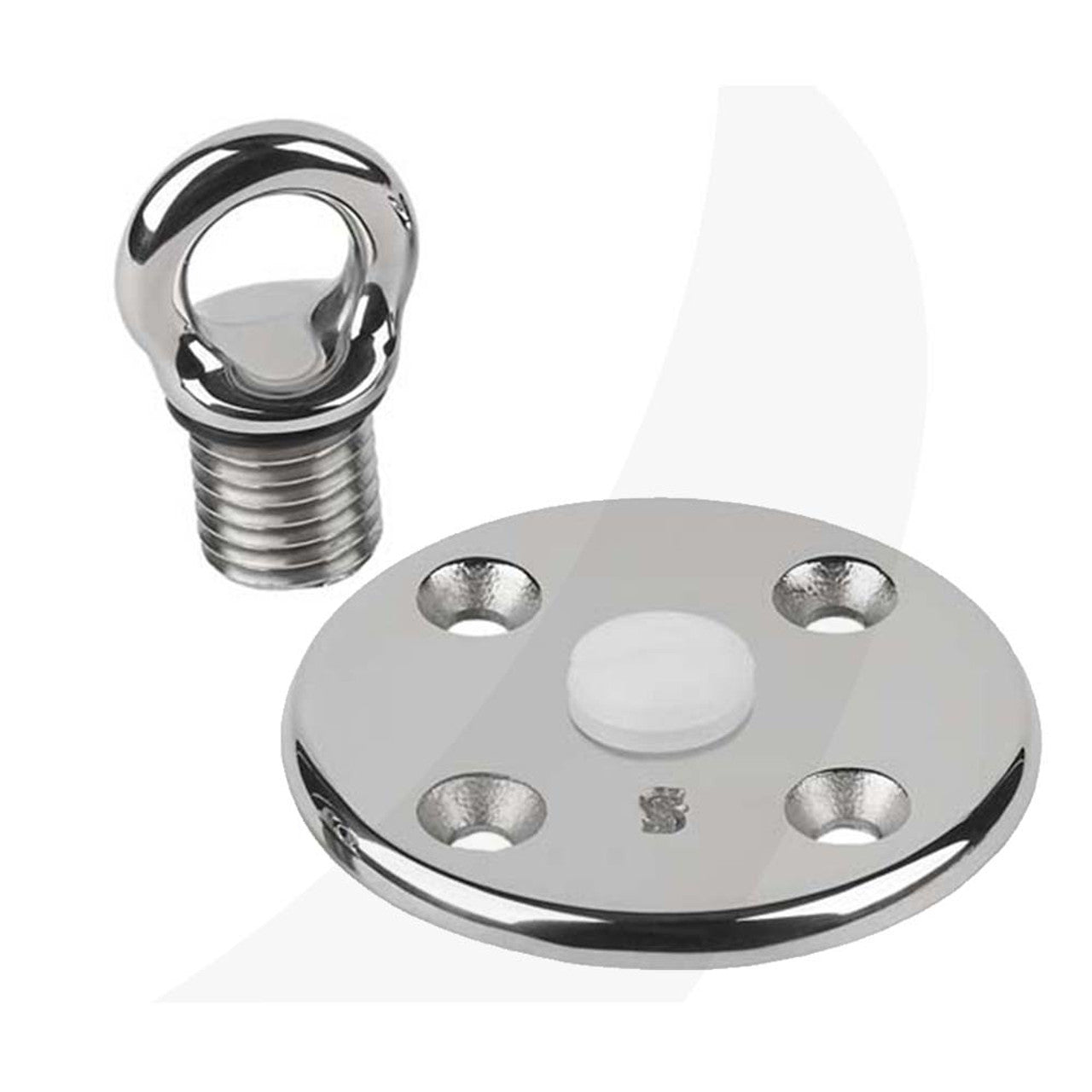

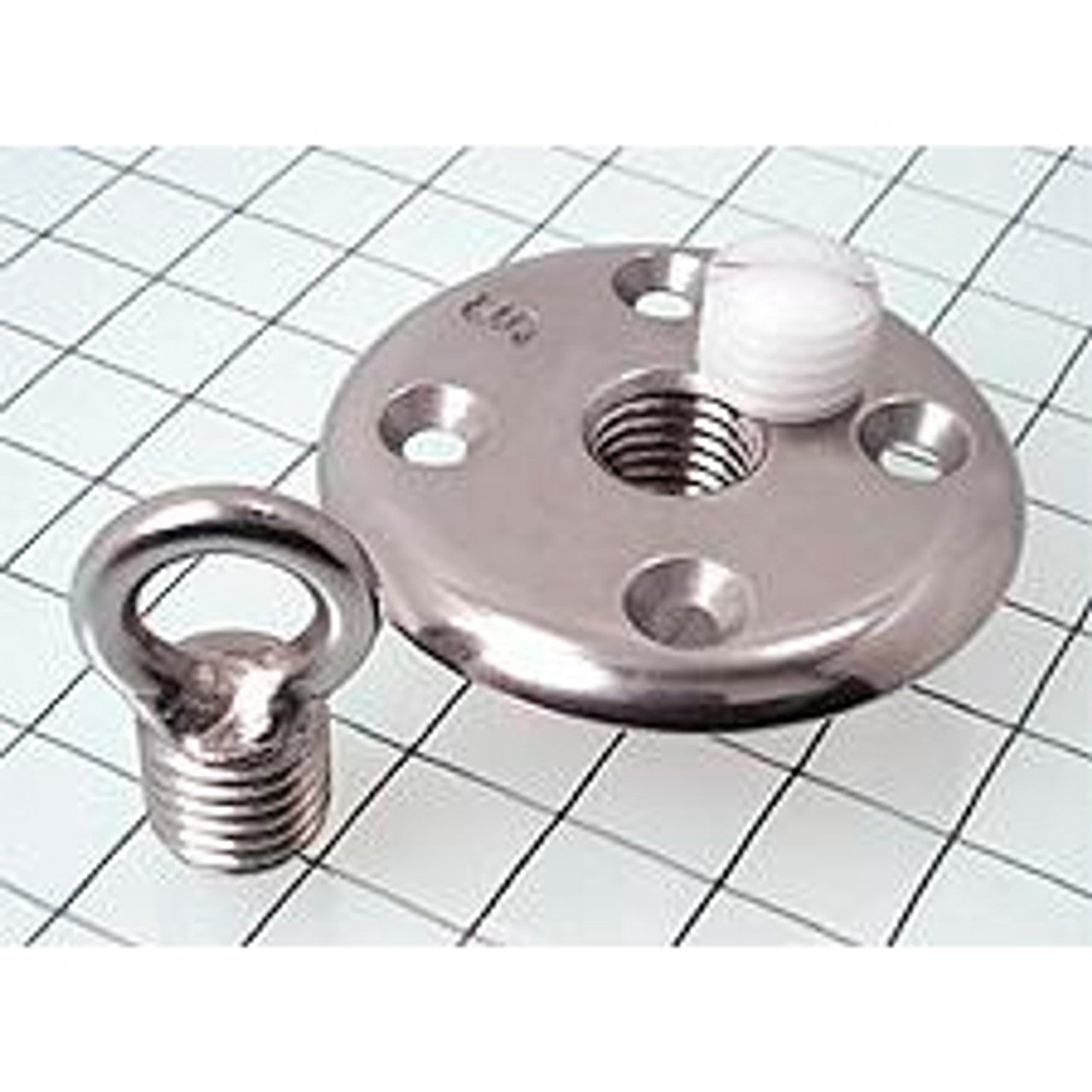

Welded eye screws into stainless deck plate allowing for easy attachment and removal of snap shackles, snatch blocks, or lashing straps. When not needed, remove eye and replace with high impact Delrin screw to fill and protect the threads.
Deck plate will accept 704-12 adapter for use with 7 Series Blocks.
Manufacturer part number: 78-83
| Features | American | Metric |
|---|---|---|
| Description | Removable Eye/Assembly | |
| Eye Width | 5/8 in | 16 mm |
| Eye Height | 5/8 in | 16 mm |
| Eye Stock | 1/4 in | 6 mm |
| Length | 3 in | 76 mm |
| Width | 3 in | 76 mm |
| Fasteners | (4) 1/4 in FH | (4) 6 mm |
| C/C A | 2 in | 51 mm |
| C/C B | 2 in | 51 mm |
| Safe Working Load | 2250 lb | 1020 kg |
| Weight | 9.5 oz | 269 g |
Welded eye screws into stainless deck plate allowing for easy attachment and removal of snap shackles, snatch blocks, or lashing straps. When not needed, remove eye and replace with high impact Delrin screw to fill and protect the threads.
Deck plate will accept 704-12 adapter for use with 7 Series Blocks.
Manufacturer part number: 78-83
