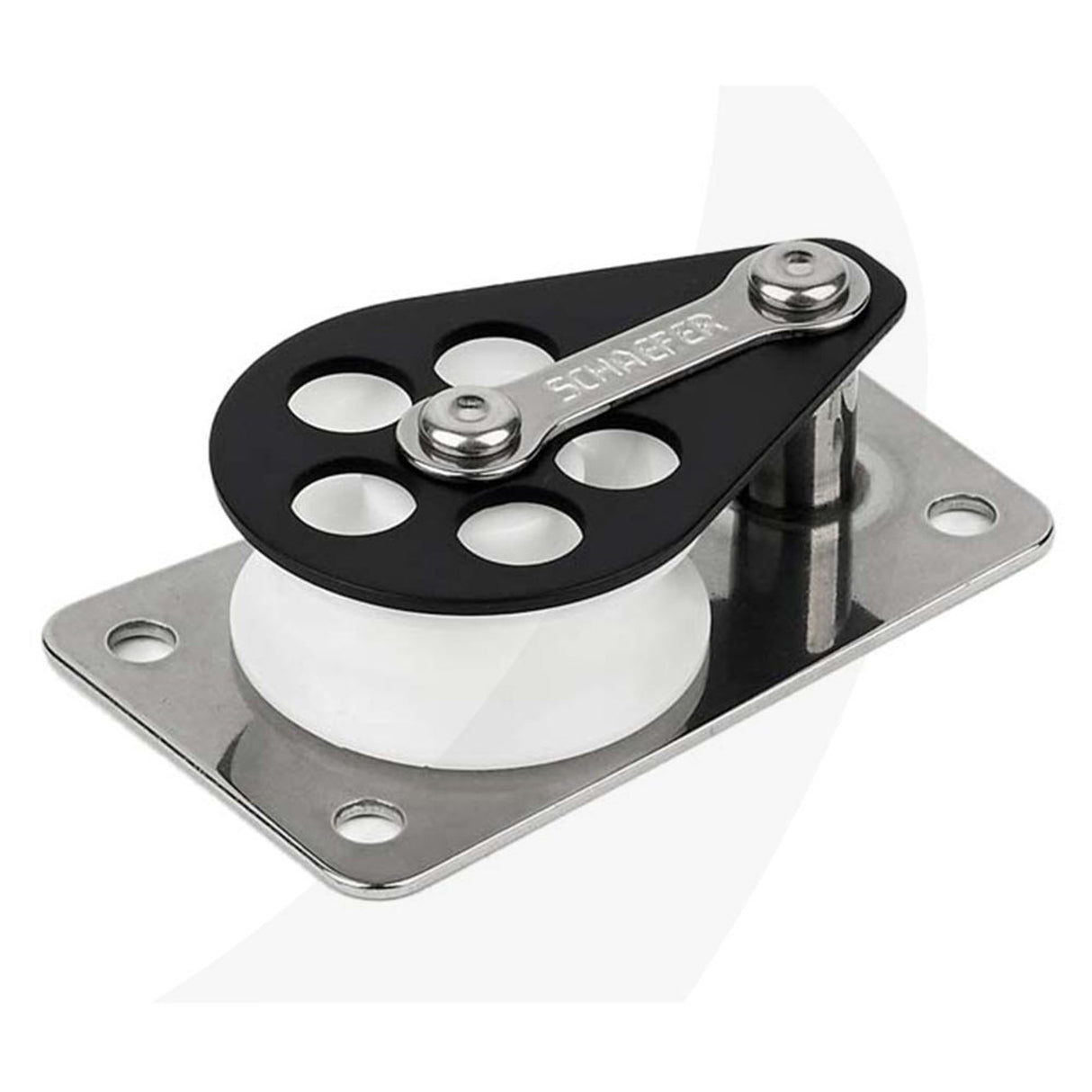

Schaefer Single Cheek 30mm
Regular price
$80.00
Unit price
Unavailable
Manufacturer part #: 303-09
Manufacturer part #: 303-09
Flat, stainless base plate distributes loads to a larger surface area than other designs that place loads on mounting bolts only. Use on spars and deck to lead sheets, halyards, reefing gear, and any control requiring a strong, smooth lead.
| Features | American | Metric |
|---|---|---|
| Description | Single Cheek | |
| Length | 2 7/8 in | 73 mm |
| Width | 1 3/4 in | 44 mm |
| Height | 3/4 in | 19 mm |
| Sheave Ø | 1 7/16 in | 37 mm |
| Max Line | 7/16 in | 11 mm |
| Fastener (4) | 10 RH | 5 mm |
| C/C | 2 3/8 in | 60 mm |
| Safe Working Load | 1000 lb | 450 kg |
| Weight Aluminum | 2.6 oz | 74 g |
Manufacturer part #: 303-09
Flat, stainless base plate distributes loads to a larger surface area than other designs that place loads on mounting bolts only. Use on spars and deck to lead sheets, halyards, reefing gear, and any control requiring a strong, smooth lead.
