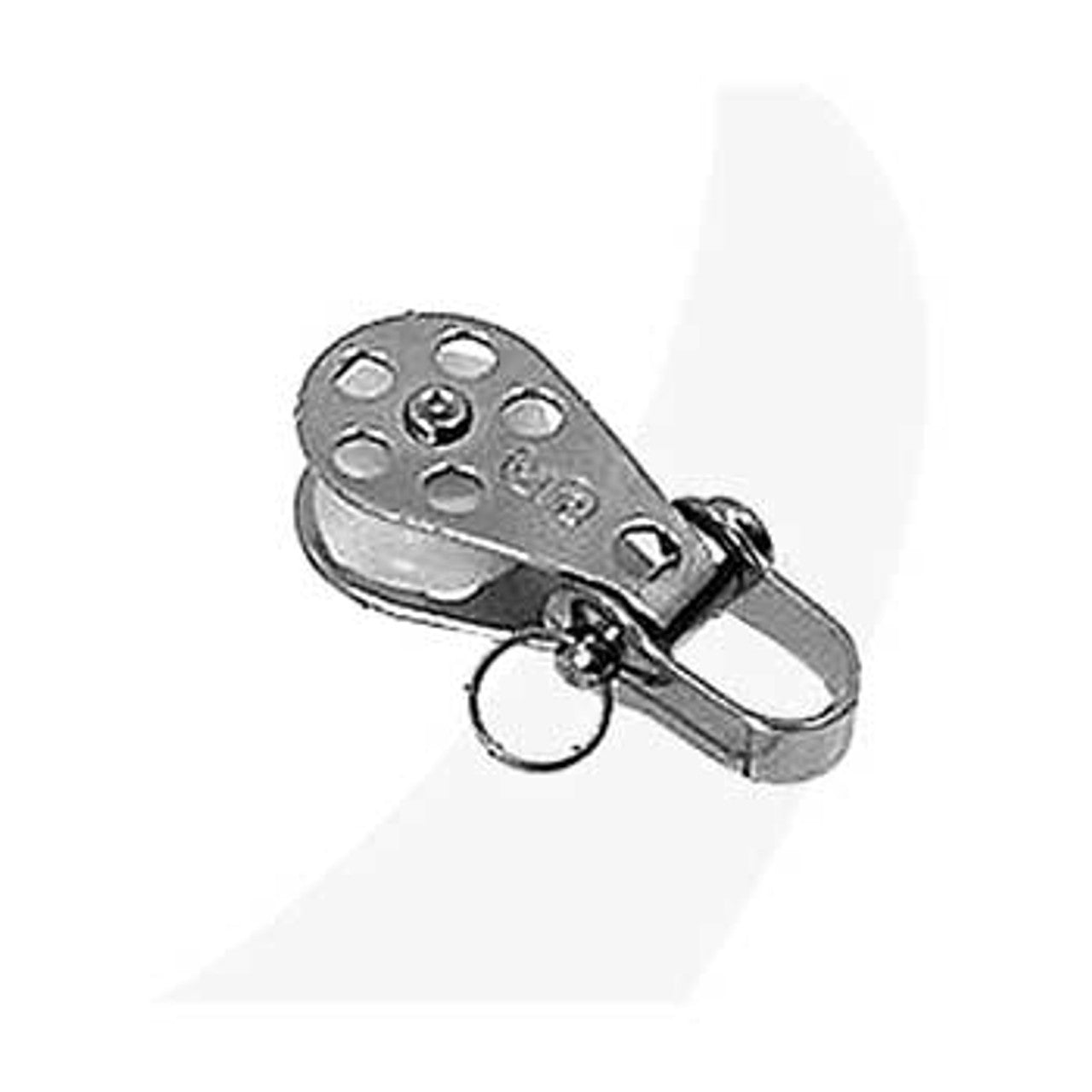

Schaefer Single, Front/Side Shackle
1 Series Blocks, the smallest offerings have introduced many sailors to their first sailing experiences on dinghys, prams and small daysailors around the globe. Offered in a complete range of configurations to meet the needs of todays small boat sailors. 1 Series Blocks are designed and developed with the same care and innovation given to our successful larger blocks. .
Schaefer's 8 Series Stainless Blocks add strength and brilliance to your deck. Featuring Delrin sheaves, forged stainless steel D shackles, bolted construction for strength and Stainless Steel cheeks polished to a high luster add beauty and confidence to your boat.
| Features | American | Metric |
|---|---|---|
| Description | Single Block/Front-Side Shackle | |
| Length | 1 31/32 in | 50 mm |
| Width | 7/8 in | 22 mm |
| Overall Thickness | 15/32 in | 12 mm |
| Sheave | 3/4 in | 19 mm |
| Sheave Width | 11/32 in | 9 mm |
| Maximum Line | 1/4 in | 6 mm |
| Pin | 3/16 in | 5 mm |
| Safe Working Load | 750 lb | 340 kg |
| Weight | 1 oz | 28 g |
Constructed of tumbled and polished Stainless Steel. High impact Delrin sheaves turn on polished, stainless spacers to function with a minimum of friction, even under heavy loading. Head shackles are high quality Stainless Steel with clevis pin and cotter ring attachments. Shackle can be attached either direction for a clean lead.
Manufacturer part number: 01-03
