Schaefer | SKU:
SCH506-62
Schaefer Swivel Deck Block
Regular price
$226.70
Unit price
Unavailable
Availability: Please call to check availability. Not available for expedited shipping. Usually Ships Within 20 Days
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.

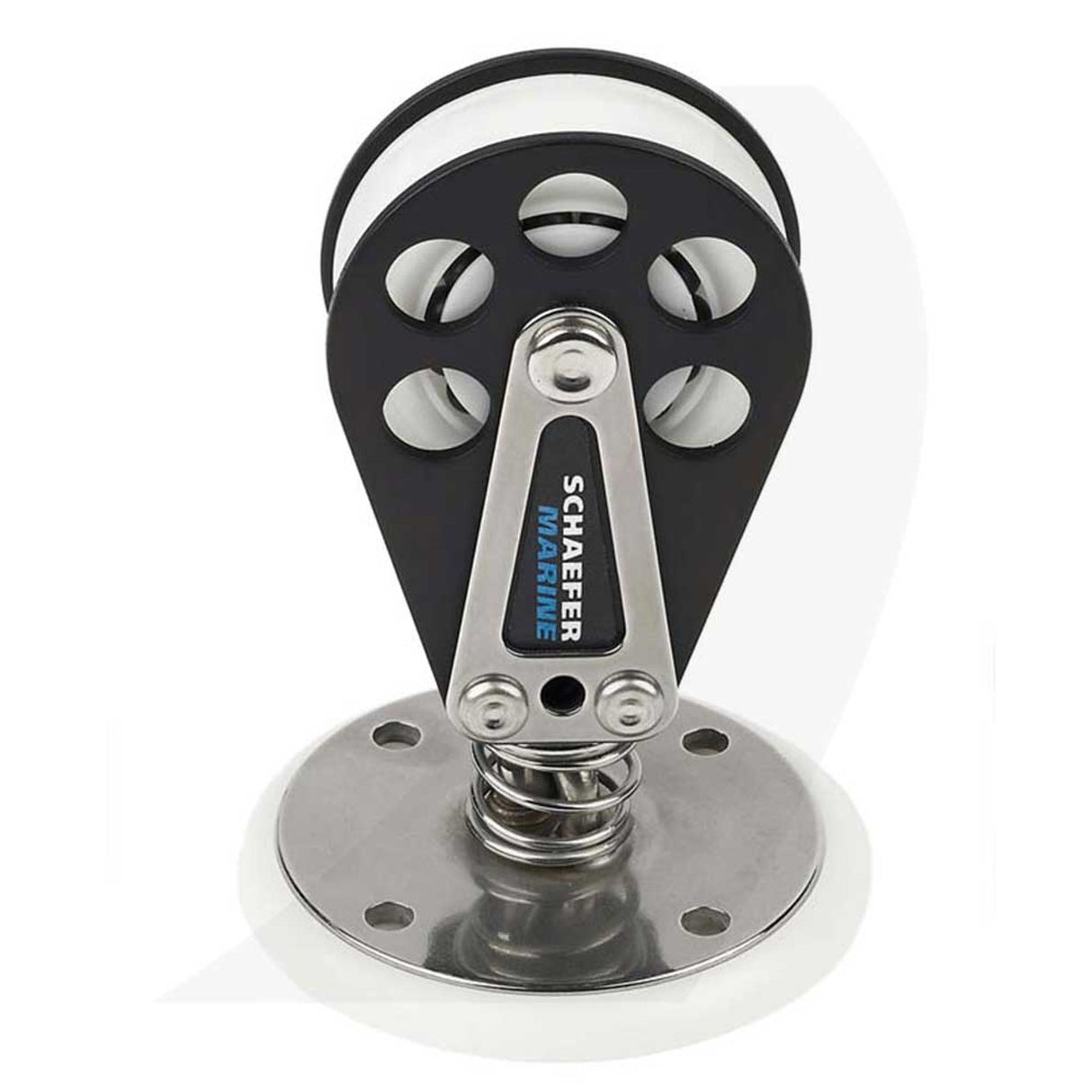

Schaefer Swivel Deck Block
Regular price
$226.70
Unit price
Unavailable
Manufacturer part #: 506-62
** 506-62 SWL 1500 lbs, 706-62 SWL 1700 lb.
*** Ø includes urethane base Delrin™ base for 5 Series = 35-018. Delrin™ base for 7,8,9 Series = 35-019. Delrin™ base for 10,11 Series = 35-091-B
Manufacturer part #: 506-62
Excellent for fixed position halyard, sheet or control line fairleads. Block swivels 360°, tilts in all directions and is supported by a heavy gauge S.S. sprint to prevent deck contact. Large Ø base helps distribute loads to a larger surface area than other smaller designs.
New M-Series style feature Aluminum sheaves with Torlon™ rollers and Delrin™ ball bearings for superior strength and low-friction. Machined center allows the hub to be used as a becket.
| Features | American | Metric |
|---|---|---|
| Description | Stand-Up Swivel | |
| Backing Plate | 97 - 48 | |
| Sheave Ø | 2 in | 51 mm |
| Max Line | 7/16 in | 11 mm |
| D*** | 2 7/8 in | 73 mm |
| Height | 4 1/32 in | 103 mm |
| H2 | 2 3/32 in | 54 mm |
| Fastener Size (4) | 10 RH | 5 mm |
| C/C | 1 13/32 in | 36 mm |
| Safe Working Load | 1750 lb | 790 kg |
| Weight SS | 9 oz | 255 g |
*** Ø includes urethane base Delrin™ base for 5 Series = 35-018. Delrin™ base for 7,8,9 Series = 35-019. Delrin™ base for 10,11 Series = 35-091-B
Manufacturer part #: 506-62
Excellent for fixed position halyard, sheet or control line fairleads. Block swivels 360°, tilts in all directions and is supported by a heavy gauge S.S. sprint to prevent deck contact. Large Ø base helps distribute loads to a larger surface area than other smaller designs.
New M-Series style feature Aluminum sheaves with Torlon™ rollers and Delrin™ ball bearings for superior strength and low-friction. Machined center allows the hub to be used as a becket.
