Schaefer | SKU:
SCH1100-04
Schaefer System 1100, 9/32" Wire, 1/2" Pin
Sale price
$4,015.49
Regular price
$4,586.50
Unit price
Unavailable
Availability: The shipping cost will be determined once your order is submitted.
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.

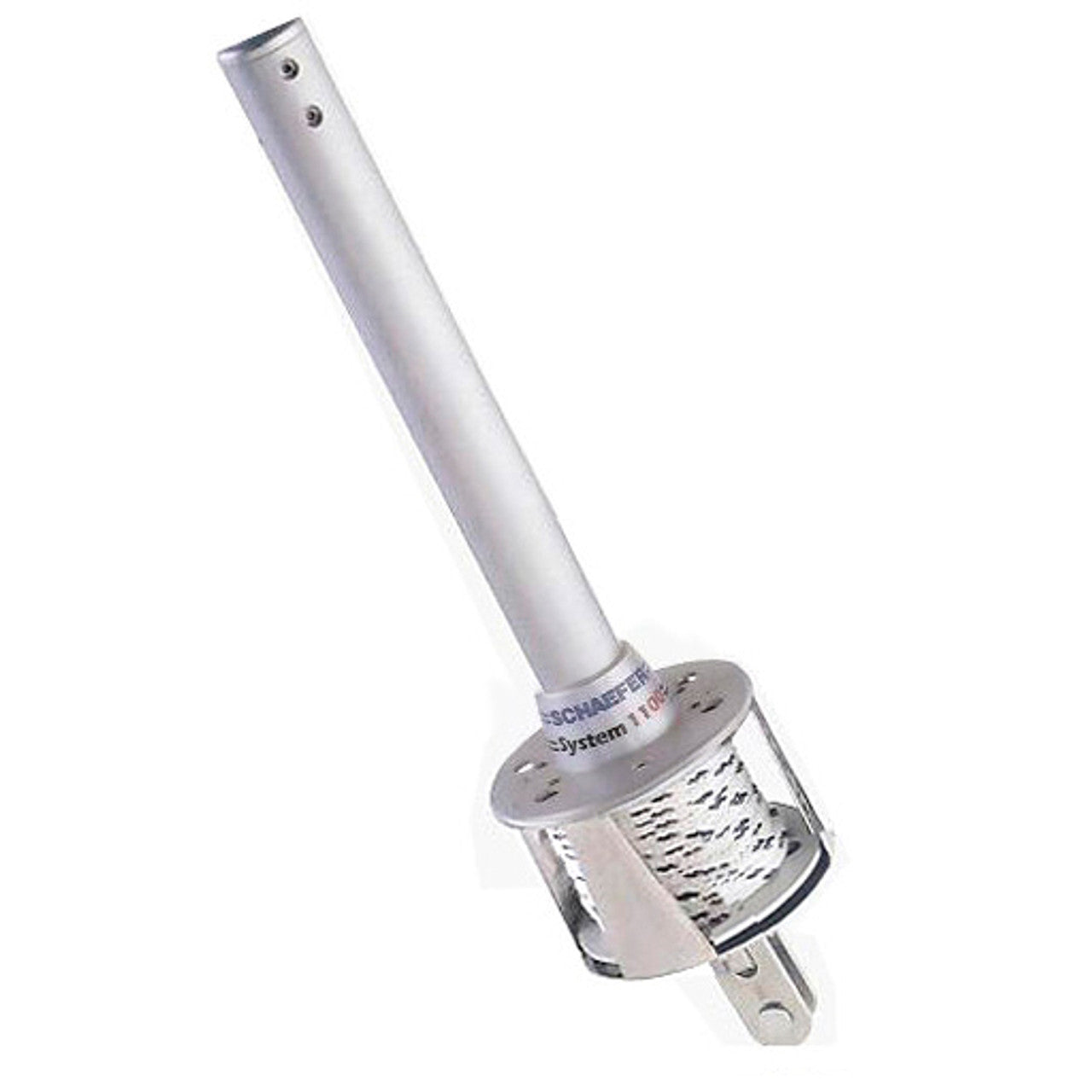

Schaefer System 1100, 9/32" Wire, 1/2" Pin
Sale price
$4,015.49
Regular price
$4,586.50
Unit price
Unavailable
Manufacturer part #: 1100-04 Furler
| Model | Sta-Lok | Boat Size |
Wire Ø |
Pin Ø |
Rod Size |
Sta-Lok Length |
System Length |
|---|---|---|---|---|---|---|---|
| 1100-01 | Yes | 27 ft -31 ft 8.2 m - 9.5 m | 3/16 in 5 mm | 3/8 in 9.5 mm | -4 4.37 mm | 2 1/8 in 54 mm | 43 ft 13 m |
| 1100-44 | No | 27 ft -31 ft 8.2 m - 9.5 m | 3/16 in 5 mm | 3/8 in 9.5 mm | -4 4.37 mm | - | 43 ft 13 m |
| 1100-02 | Yes | 27 ft -31 ft 8.2 m - 9.5 m | 7/32 in 5.5 mm | 7/16 in 12 mm | -6 5.03 mm | 2 1/2 in 64 mm | 43 ft 13 m |
| 1100-55 | No | 27 ft -31 ft 8.2 m - 9.5 m | 7/32 in 5.5 mm | 7/16 in 12 mm | -6 5.03 mm | - | 43 ft 13 m |
| 1100-03 | Yes | 27 ft - 31 ft 8.2 m - 9.5 m | 1/4 in 6 mm | 1/2 in 13 mm | -8 A(5.72 mm) | 2 9/16 in 65 mm | 43 ft 13 m |
| 1100-66 | No | 27 ft - 31 ft 8.2 m - 9.5 m | 1/4 in 6 mm | 1/2 in 13 mm | -8 A(5.72 mm) | - | 43 ft 13 m |
| 1100-04 | Yes | 27 ft -31 ft 8.2 m - 9.5 m | 9/32 in 7 mm | 1/2 in 13 mm | -10 6.35 mm | 3 in 76 mm | 43 ft 13 m |
Manufacturer part #: 1100-04 Furler
DescriptionSystem 1100
 | Features | American | Metric |
|---|---|---|---|
| A | 3 1/4 in | 83 mm | |
| B | 7 1/2 in | 190 mm | |
| C | 8 11/16 in | 221 mm | |
| D | 6 3/4 in | 171 mm | |
| E | 11 1/8 in | 283 mm | |
| F | 27 1/8 in | 689 mm | |
| G | 47 1/2 in | 1.20 m | |
| H | 1 3/16 in | 30 mm | |
| I | 2 in | 51 mm | |
| J | 3 1/8 in | 79 mm | |
| K | 3 11/16 in | 94 mm | |
| L | 5 3/16 in | 132 mm | |
| M | 6 in | 153 mm | |
| N | 1 1/8 in | 29 mm | |
| O | 43 ft | 13 m | |
| P | 1 5/8 in | 41 mm |
Manufacturer part #: 1100-01
All Schaefer furling systems are easily adaptable to rod headstays. Extrusions can be installed after rod is shortened and re-headed.
- Boat sizes are approximate for typical wire/pin combinations
- Wire size and pin diameter are critical sizing/ordering dimensions
- All Schaefer Furlers are easily adaptable to wire or rod headstays
- Additional extrusions may be ordered for custom length systems
- Custom Sta-Lok™ and base toggle/link combinations available
