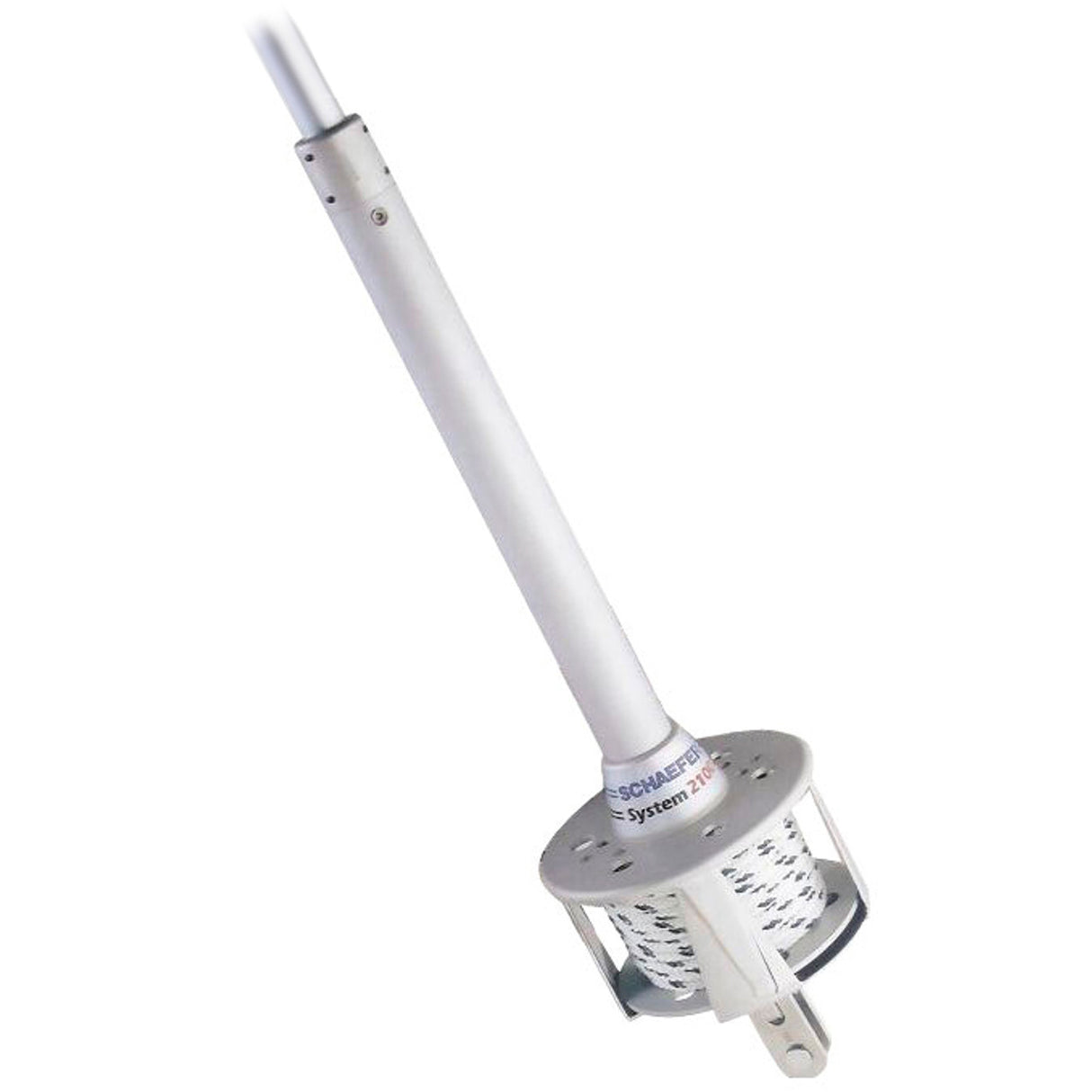

Schaefer System 2100, 9/32" Wire, 1/2" Pin (7/13mm)
Availability: The shipping cost will be determined once your order is submitted.
Shipping and Delivery
Enjoy free shipping on qualifying orders of $145 or more delivered within the 48 contiguous United States. Alaska, Hawaii, Puerto Rico, and other U.S. territories are excluded.
Delivery for qualifying free-shipping orders takes 8 to 10 business days.
Free shipping does not apply to:
- Orders containing only clearance items
- Customized special orders made to your detailed requirements
- Sails and boats
- Long tracks, spinnaker poles, whisker poles, and large tubes
- Oversized or heavy items, including items that require less-than-truckload (LTL) freight shipping
Standard Shipping
- UPS and FedEx Ground: Delivery usually takes 2 to 5 business days for in-stock orders.
- USPS: Allow an additional 3 business days beyond the standard shipping time.
- Saturday delivery: UPS and FedEx deliver on Saturdays only for overnight shipments sent on Friday. Additional charges may apply.
Oversized Items and Freight Shipping
Oversized items, such as whisker poles, spinnaker poles, and tracks longer than 8 feet, require freight shipping. The estimated shipping cost is $500, depending on the destination.
For freight deliveries, provide a commercial address, such as the marina, yacht club, or boatyard where your sailboat is located. The recipient must sign for the shipment upon delivery.
International Orders
International customers are responsible for all applicable import duties, fees, and taxes.
Schaefer System 2100, 9/32" Wire, 1/2" Pin (7/13mm)
Manufacturer part #: 2100-02 Furler
| Model | Sta-Lok | Boat Size |
Wire |
Pin |
Rod Size |
Sta-Lok Length |
System Length |
|---|---|---|---|---|---|---|---|
| 2100-01 | Yes | 30 ft - 42 ft 9.1 m - 12.8 m | 1/4 in 6 mm | 1/2 in 13 mm | -8 5.72 mm | 2 9/16 in 65 mm | 49 ft 3 in 15 m |
| 2100-44 | No | 30 ft - 42 ft 9.1 m - 12.8 m | 1/4 in 6 mm | 1/2 in 13 mm | -8 5.72 mm | - | 49 ft 3 in 15 m |
| 2100-02 | Yes | 30 ft - 42 ft 9.1 m - 12.8 m | 9/32 in 7 mm | 1/2 in 13 mm | -10 6.35 mm | 3 in 76 mm | 49 ft 3 in 15 m |
| 2100-03 | Yes | 30 ft - 42 ft 9.1 m - 12.8 m | 5/16 in 8 mm | 5/8 in 16 mm | -12 7.14 mm | 3 1/4 in 83 mm | 49 ft 3 in 15 m |
| 2100-55 | No | 30 ft - 42 ft 9.1 m - 12.8 m | 5/16 in 8 mm | 5/8 in 16 mm | -12 7.14 mm | - | 49 ft 3 in 15 m |
| 2100-04 | Yes | 30 ft - 42 ft 9.1 m - 12.8 m | 3/8 in 10 mm | 5/8 in 16 mm | -17 8.38 mm | 3 3/4 in 95 mm | 49 ft 3 in 15 m |
Manufacturer part #: 2100-02 Furler
DescriptionSystem 2100
 | Features | American | Metric |
|---|---|---|---|
| A | 3 3/4 in | 95 mm | |
| B | 8 5/8 in | 219 mm | |
| C | 10 in | 254 mm | |
| D | 8 1/4 in | 210 mm | |
| E | 13 in | 330 mm | |
| F | 29 5/8 in | 752 mm | |
| G | 50 in | 1.27 m | |
| H | 1 1/2 in | 38 mm | |
| I | 2 1/2 in | 64 mm | |
| J | 3 11/16 in | 94 mm | |
| K | 4 3/8 in | 111 mm | |
| L | 6 1/4 in | 159 mm | |
| M | 7 1/4 in | 184 mm | |
| N | 1 1/4 in | 32 mm | |
| O | 49 ft 3 in | 15 m | |
| P | 2 in | 51 mm |
Manufacturer part #: 2100-02 Furler
All Schaefer furling systems are easily adaptable to rod headstays. Extrusions can be installed after rod is shortened and re-headed.
- Boat sizes are approximate for typical wire/pin combinations
- Wire size and pin diameter are critical sizing/ordering dimensions
- All Schaefer Furlers are easily adaptable to wire or rod headstays
- Additional extrusions may be ordered for custom length systems
- Custom Sta-Lok and base toggle/link combinations available
