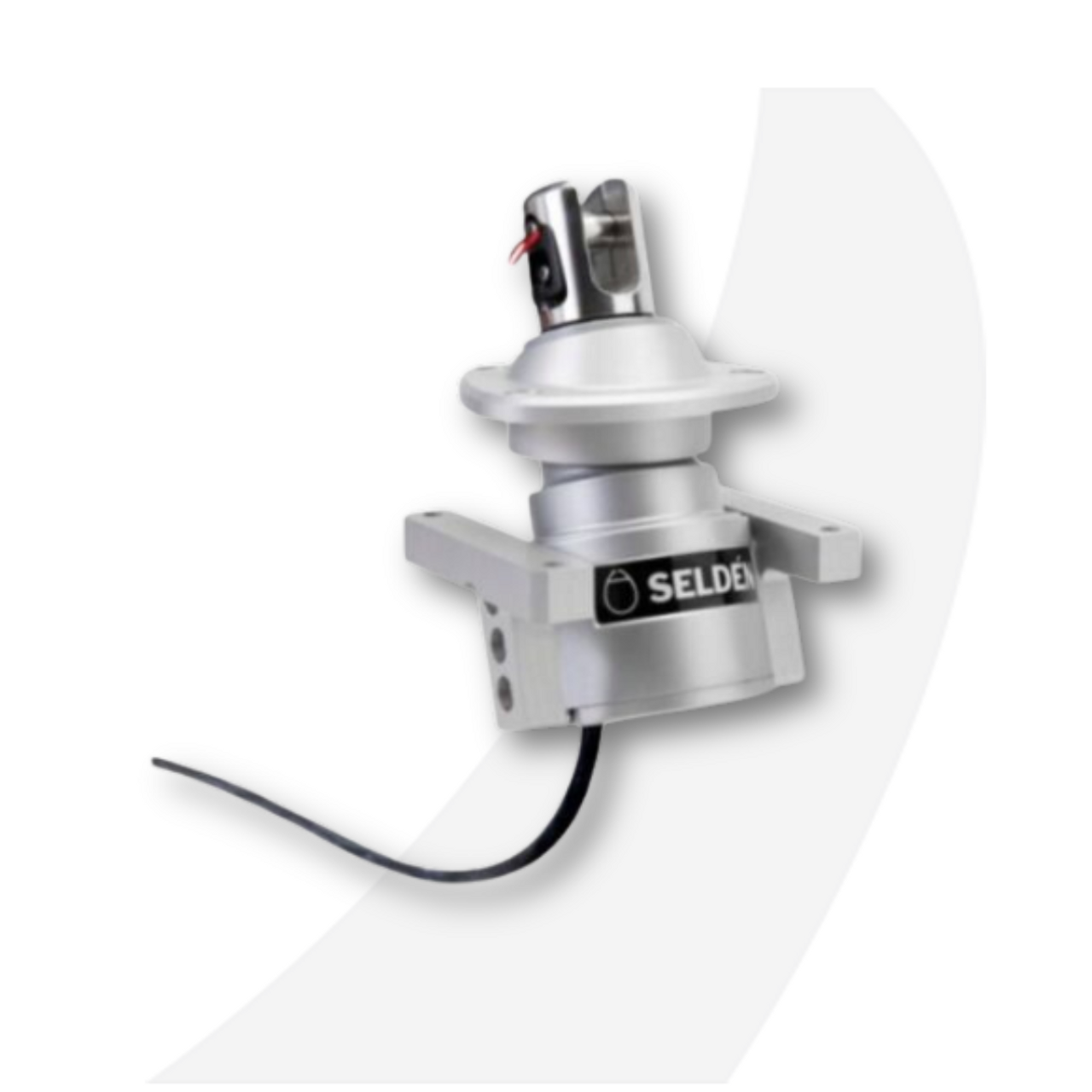

Selden Cxe25 Td Drive Unit Pack
Sale price
$3,085.50
Regular price
$3,300.00
Unit price
Unavailable
Selden Cxe25 Td Drive Unit Pack
Like other electric functions from Seldén, CXe runs on SEL-Bus and a Power Supply Unit (PSU) converting 12V or 24V to 42V. SEL-Bus is a can-bus system with software that combines intelligence and power on board to sense and adapt loads for maximum efficiency and safety. Once you have installed SEL-Bus you can connect additional functions and run them all on the same PSU. 42V allows for smaller power cables (6 mm2) and a compact brushless motor.
| Technical Description | ||
| Features | CXe 25 | CXe 45 |
| Max working load, kN | 25 | 45 |
| Max suggested sail area, m2 | 115 | 200 |
| AT-cable, diameter, mm | 13 | 15 |
| Operation | 2-speed | |
| Rev. per minute (slow/high speed) | 220/500 | |
| Voltage, V | 42 | |
| Current consumption, Ah, Nominal, 12V | 0,13 Ah (Nominal 50 A, 10 seconds) | |
| Current consumption, Ah, Nominal, 24V | 0,07 Ah (Nominal 25 A, 10 seconds) | |
| Power, W | 1000 | |
| Motor | 42V, brushless | |
