Selden | SKU:
SEL545-455-29

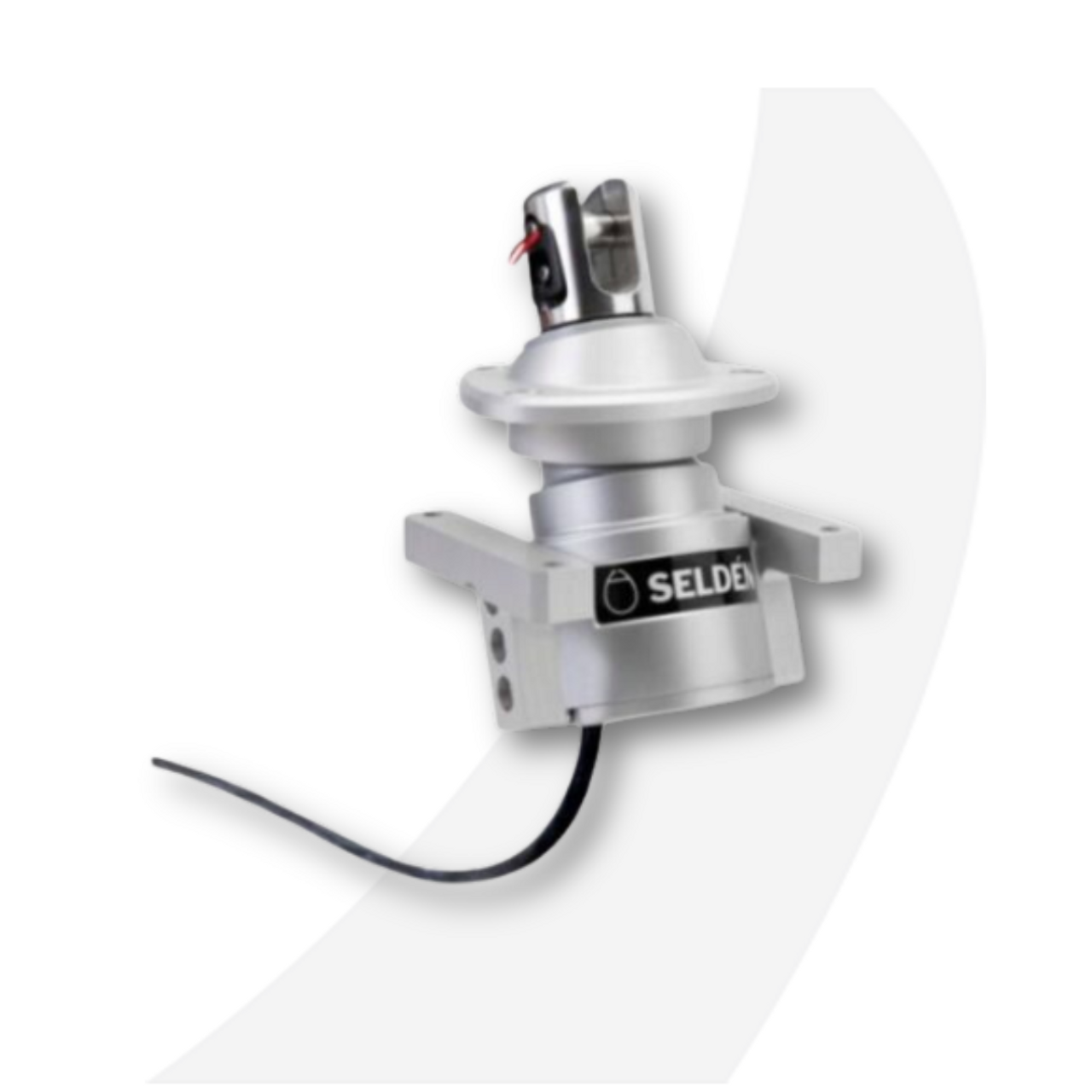

Selden Cxe25 Td Drive Unit Pack/Haly.Sw.
Sale price
$3,272.50
Regular price
$3,500.00
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Selden Cxe25 Td Drive Unit Pack/Haly.Sw.
Sale price
$3,272.50
Regular price
$3,500.00
Unit price
Selden Cxe25 Td Drive Unit Pack/Haly.Sw.
Like other electric functions from Seldén, CXe runs on SEL-Bus and a Power Supply Unit (PSU) converting 12V or 24V to 42V. SEL-Bus is a can-bus system with software that combines intelligence and power on board to sense and adapt loads for maximum efficiency and safety. Once you have installed SEL-Bus you can connect additional functions and run them all on the same PSU. 42V allows for smaller power cables (6 mm2) and a compact brushless motor.
| Technical Description | ||
| Features | CXe 25 | CXe 45 |
| Max working load, kN | 25 | 45 |
| Max suggested sail area, m2 | 115 | 200 |
| AT-cable, diameter, mm | 13 | 15 |
| Operation | 2-speed | |
| Rev. per minute (slow/high speed) | 220/500 | |
| Voltage, V | 42 | |
| Current consumption, Ah, Nominal, 12V | 0,13 Ah (Nominal 50 A, 10 seconds) | |
| Current consumption, Ah, Nominal, 24V | 0,07 Ah (Nominal 25 A, 10 seconds) | |
| Power, W | 1000 | |
| Motor | 42V, brushless | |
