Spinlock TSR Organizer
Regular priceFrom
$493.00
Unit price
Spinlock TSR Organizer
- 20mm and 30mm diameter alloy sheaves
- 30mm sheaves for diverting large deflection angles and large diameter lines
- All rotating sheaves with plain bearings
- Alloy top rails
- Fixed Sheaves can be inserted in the organiser to further increase deflection loads
- Modular design and assembly – Sheaves can be moved to any spacing
- Sheave diameters can be optimised for each application
- Tulip shaped design reduces friction from vertical defection
- Low profile design
- Simple inserting and removal of endless lines

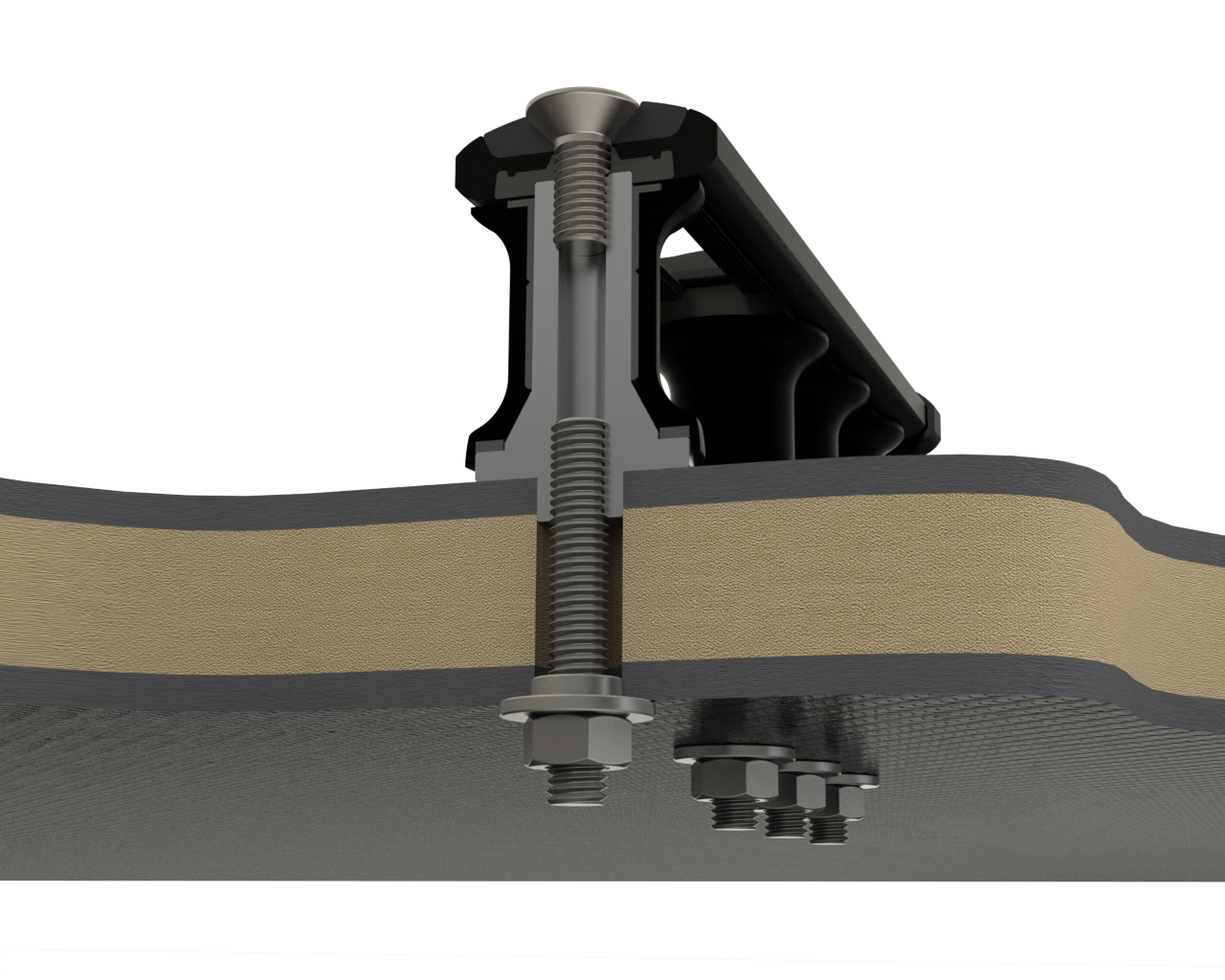

- Central shaft designed to spread load through laminate
- Titanium parts available to further reduce weight

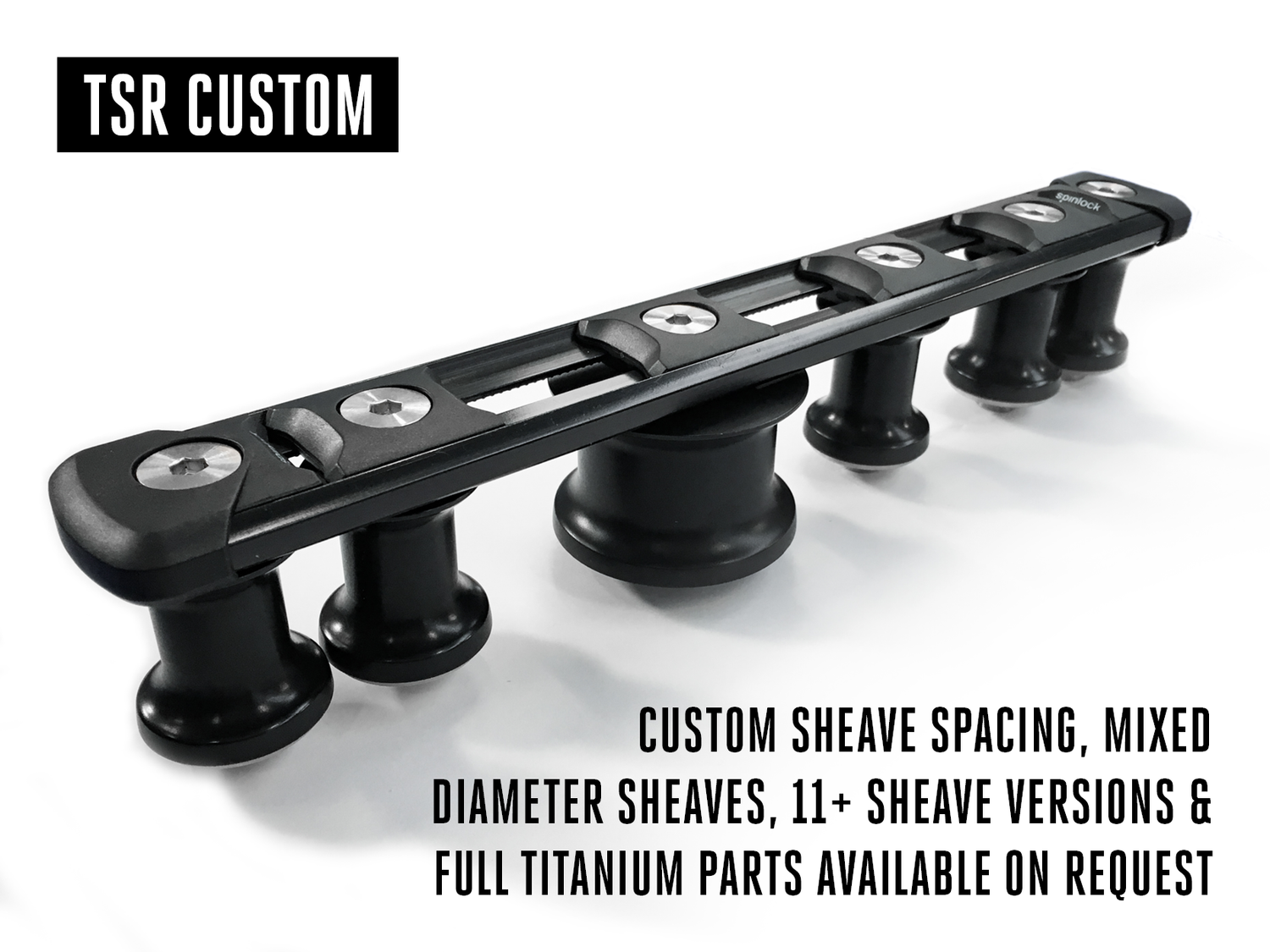

- Custom sheave spacing available
Specifications
- Sheave Diameter/Type
- 25mm (1") composite
- SWL per Sheave
- 400kg (880lbs)
- Total SWL per unit
- No of sheaves x 200kg (440lbs)
- Line Diameter
- Up to 10mm (3/8")
