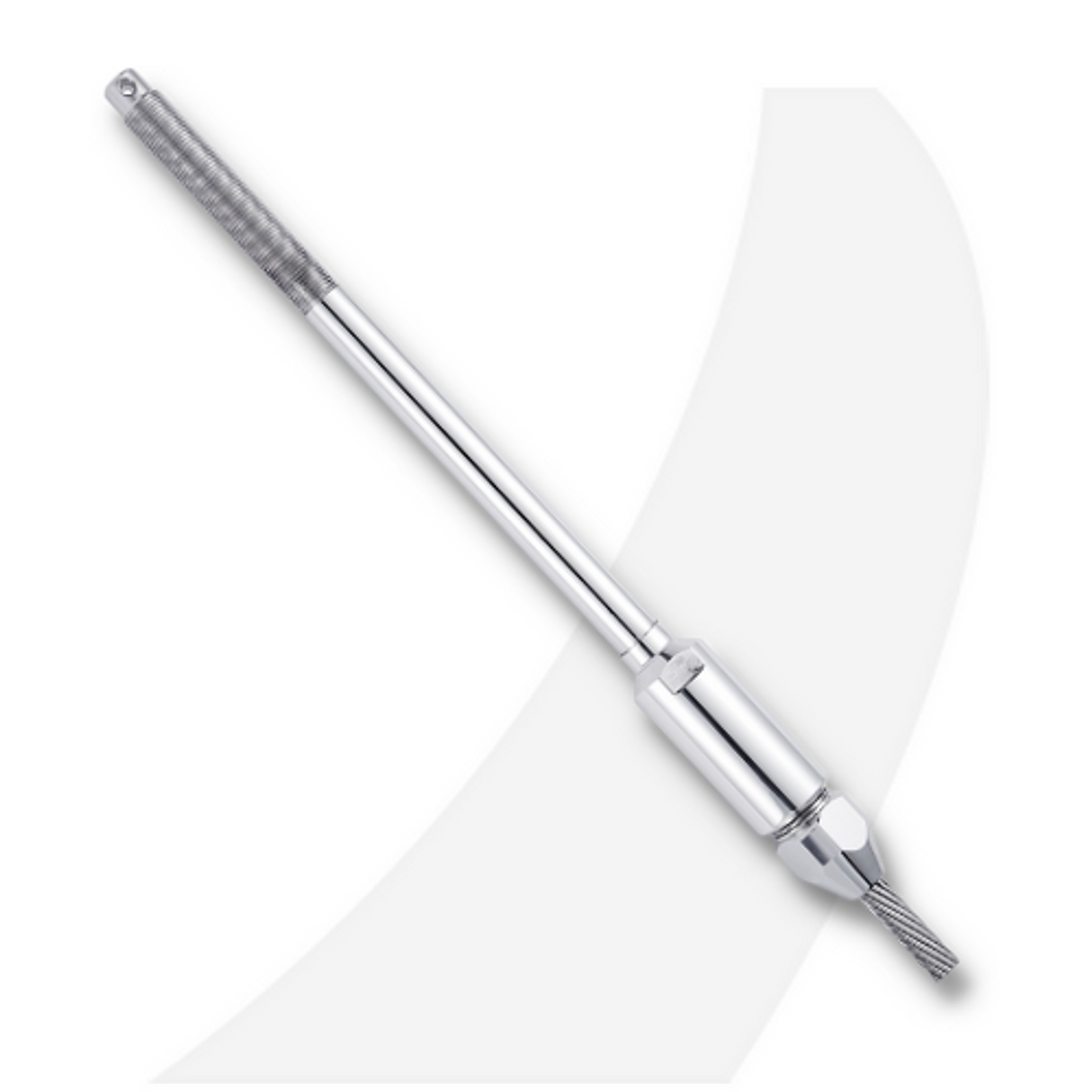

Sta-Lok Long Stud 1/4" Wire x 3/8" RH Thread
Manufacturer part #: 176-06 3/8
| Long Stud Terminal | Wire Inch | A | B | UNF C | |
|---|---|---|---|---|---|
| 176-04 | 5/32 in | 5 9/16 in | 2 1/8 in | 5/16 in | |
| 176-05-5/16 | 3/16 in | 6 1/16 in | 2 1/8 in | 5/16 in | |
| 176-05 | 3/16 in | 6 9/16 in | 2 5/8 in | 3/8 in | |
| 176-55 | 7/32 in | 7 3/32 in | 2 5/8 in | 3/8 in | |
| 176-55-7/16 | 7/32 in | 7 27/64 in | 3 in | 7/16 in | |
| 176-06-3/8 | 1/4 in | 7 3/32 in | 2 5/8 in | 3/8 in | |
| 176-06-7/16 | 1/4 in | 7 27/64 in | 3 in | 7/16 in | |
| 176-06 | 1/4 in | 8 7/8 in | 3 1/4 in | 1/2 in | |
| 176-07 | 9/32 in | 8 7/8 in | 3 1/4 in | 1/2 in | |
| 176-08 | 5/16 in | 8 7/8 in | 3 1/4 in | 1/2 in | |
| 176-08-5/8 | 5/16 in | 10 11/16 in | 3 3/4 in | 5/8 in | |
| 176-10 | 3/8 in | 10 23/32 in | 3 3/4 in | 5/8 in | |
| 176-11 | 7/16 in | 13 3/8 in | 4 17/32 in | 3/4 in | |
| 176-12 | 1/2 in | 13 3/8 in | 4 17/32 in | 3/4 in |
Manufacturer part #: 176-06 3/8
The Sta-lok system is a simple mechanical method of terminating wire ropes, and has proven itself to be the most efficient method of terminating wire ropes. The Sta-lok terminal is stronger than the wire rope. It will work under constant load and variable shock loading. In all situations the Sta-lok Terminal has proven totally reliable.
The Sta-lok Terminal is manufactured from 316 stainless steel grade 1.4401, and can be fitted on site using very simple hand tools. All Sta-lok Terminals are reusable (*).
The clever design of the Sta-lok long terminals enables the replacement of damaged swage terminals without having to replace the wire rope.
Sizes 5/32" - 1/2" are listed; right hand thread only.
* A new wedge component must be used.
