Tylaska Marine | SKU:
TY3020-40

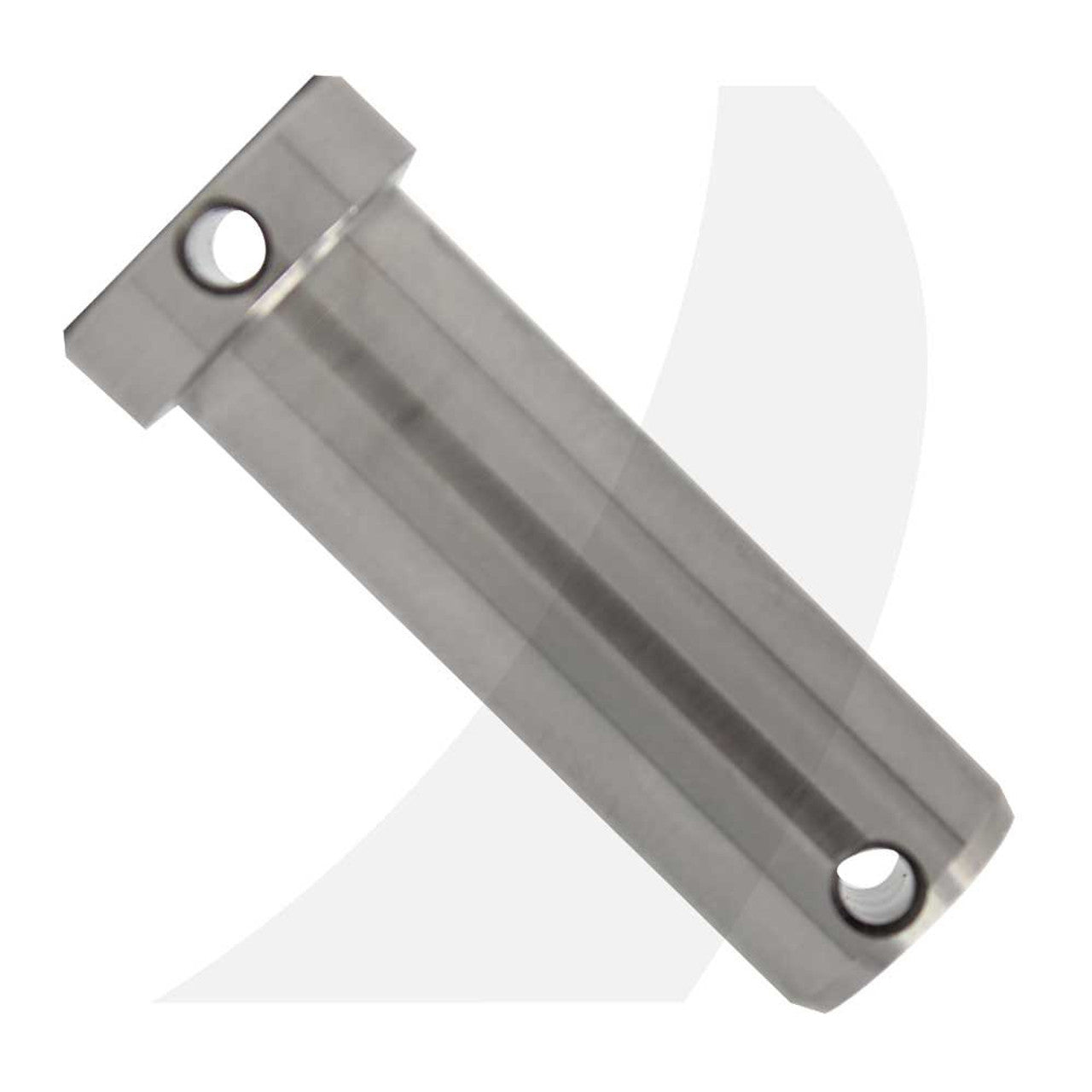

Tylaska Clevis Pins 5/8" Dia. x 1 1/4" Grip Length
Sale price
$15.45
Regular price
$20.60
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Tylaska Clevis Pins 5/8" Dia. x 1 1/4" Grip Length
Sale price
$15.45
Regular price
$20.60
Unit price
Unavailable
Tylaska Clevis Pins 5/8" Dia. x 1 1/4" Grip Length (TY3020-40).
Tylaska basic clevis pins are precision CNC turned out of 316 stainless steel and are available in diameters from 1/8" through 3/4" with a wide range of grip lengths in each size.
Tylaska?s premium grade clevis pins are precision turned on Swiss lathes from corrosion resistant 316L bar. Our superior finish clevis pins cover a wide range of pin diameters and grip lengths that no other single manufacturer provides.
Tylaska?s premium grade clevis pins are precision turned on Swiss lathes from corrosion resistant 316L bar. Our superior finish clevis pins cover a wide range of pin diameters and grip lengths that no other single manufacturer provides.
Technical Description
Tylaska Part
Diameter
(in)
(in)
Grip Length A
(in)
(in)
B
(in)
(in)
C
(in)
(in)
D
(in)
(in)
E
(in)
(in)
F
(in)
(in)
TY3004-12
1/8"
3/8"
0.12
0.25
0.49
0.069
0.062
TY3004-16
1/8"
1/2"
0.12
0.25
0.73
0.069
0.062
TY3005-12
5/32"
3/8"
0.15
0.28
0.49
0.081
0.071
TY3005-20
5/32"
5/8"
0.15
0.28
0.73
0.081
0.071
TY3006-09
3/16"
9/32"
0.18
0.31
0.41
0.093
0.063
TY3006-13
3/16"
13/32"
0.18
0.31
0.54
0.093
0.063
TY3006-17
3/16"
17/32"
0.18
0.31
0.66
0.093
0.063
TY3006-24
3/16"
3/4"
0.18
0.31
0.88
0.093
0.063
TY3006-32
3/16"
1"
0.18
0.31
1.13
0.093
0.063
TY3008-13
1/4"
13/32"
0.25
0.37
0.54
0.096
0.091
TY3008-16
1/4"
1/2"
0.25
0.37
0.63
0.096
0.091
TY3008-24
1/4"
3/4"
0.25
0.37
0.89
0.096
0.091
TY3008-28
1/4"
7/8"
0.25
0.37
1.01
0.096
0.091
TY3008-32
1/4"
1"
0.25
0.37
1.13
0.096
0.091
TY3008-40
1/4"
1 1/4"
0.25
0.37
1.39
0.096
0.091
TY3008-48
1/4"
1 1/2"
0.25
0.37
1.64
0.096
0.091
TY3010-16
5/16"
1/2"
0.3
0.43
0.66
0.126
0.097
TY3010-18
5/16"
9/16"
0.3
0.43
0.73
0.126
0.097
TY3010-22
5/16"
11/16"
0.3
0.43
0.86
0.126
0.097
TY3010-32
5/16"
1"
0.3
0.43
1.18
0.126
0.097
TY3010-40
5/16"
1 1/4"
0.3
0.43
1.42
0.126
0.097
TY3012-22
3/8"
11/16"
0.37
0.49
0.86
0.127
0.12
TY3012-26
3/8"
13/16"
0.37
0.49
0.99
0.127
0.12
TY3012-32
3/8"
1"
0.37
0.49
1.18
0.127
0.12
TY3012-40
3/8"
1 1/4"
0.37
0.49
1.43
0.127
0.12
