Tylaska | SKU:
TY3601-M12
Tylaska Cone for 12mm, 1X19 Wire Rope
Sale
Sale price
$40.95
Regular price
$54.60
Unit price
Shipping and Delivery
Enjoy free shipping on qualifying orders of $145 or more delivered within the 48 contiguous United States. Alaska, Hawaii, Puerto Rico, and other U.S. territories are excluded.
Delivery for qualifying free-shipping orders takes 8 to 10 business days.
Free shipping does not apply to:
- Orders containing only clearance items
- Customized special orders made to your detailed requirements
- Sails and boats
- Long tracks, spinnaker poles, whisker poles, and large tubes
- Oversized or heavy items, including items that require less-than-truckload (LTL) freight shipping
Standard Shipping
- UPS and FedEx Ground: Delivery usually takes 2 to 5 business days for in-stock orders.
- USPS: Allow an additional 3 business days beyond the standard shipping time.
- Saturday delivery: UPS and FedEx deliver on Saturdays only for overnight shipments sent on Friday. Additional charges may apply.
Oversized Items and Freight Shipping
Oversized items, such as whisker poles, spinnaker poles, and tracks longer than 8 feet, require freight shipping. The estimated shipping cost is $500, depending on the destination.
For freight deliveries, provide a commercial address, such as the marina, yacht club, or boatyard where your sailboat is located. The recipient must sign for the shipment upon delivery.
International Orders
International customers are responsible for all applicable import duties, fees, and taxes.
Tylaska Cone for 12mm, 1X19 Wire Rope
Sale price
$40.95
Regular price
$54.60
Unit price

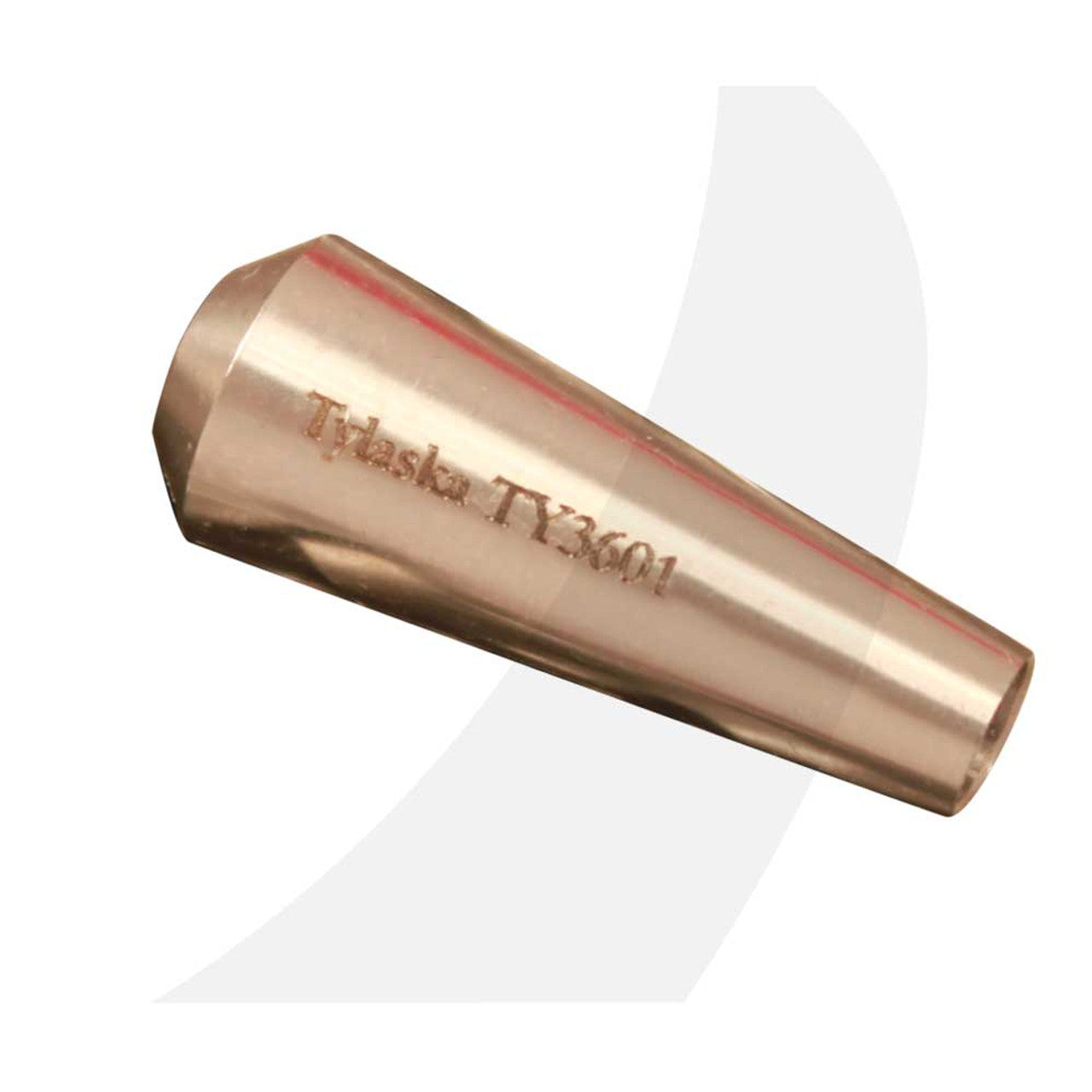

Tylaska Norseman Gibb Replacement Swageless Cone 1x19 (TY3601-M12).
12mm Replacement Navtec Part Metric: NCC-M12.

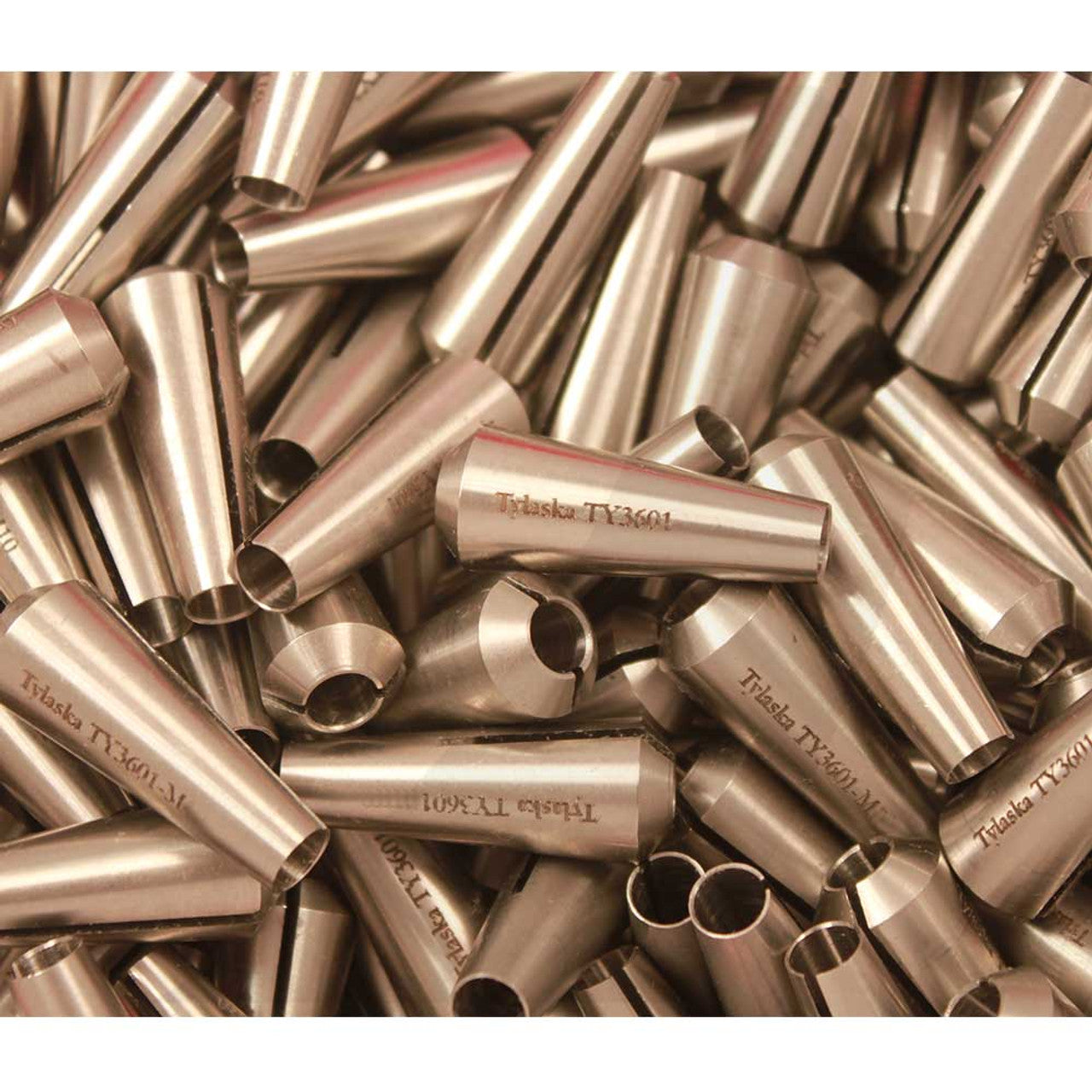

Tylaska offers a full range of replacement cones for the popular Norseman Gibb swageless terminals for 1X19 and Dyform compact-strand wire rope.
Tylaska Marine and Aerospace has acquired the drawings for the original cones used in the discontinued Navtec Norseman Gibb swagesless fittings and is now producing them again. These cones can be used as direct replacements for the legacy swageless fittings still in use. The replacement cones are made in the USA to the exact specs of the original prints with the same dimensions, tolerances and materials.
See the cross reference chart to determine the size and part number you need.
Tylaska offers a full range of replacement cones for the popular Norseman Gibb swageless terminals for 1X19 and Dyform compact-strand wire rope.
Tylaska Marine and Aerospace has acquired the drawings for the original cones used in the discontinued Navtec Norseman Gibb swagesless fittings and is now producing them again. These cones can be used as direct replacements for the legacy swageless fittings still in use. The replacement cones are made in the USA to the exact specs of the original prints with the same dimensions, tolerances and materials.
See the cross reference chart to determine the size and part number you need.
Technical Description
| Tylaska Part | Navtec Part Metric | Navtec Part Imperial | Wire Size (mm) | Wire Size (in) | Metric | Imperial | ||||
| Major Diam. | Bore | Lenght | Major Diam. | Bore | Lenght | |||||
| TY3601-M025 | NCC-M025 | NCC-03 | 2.5 | 3/32 | 4.3 | 1.6 | 13.7 | 0.17 | 0.06 | 0.54 |
| TY3601-M03 | NCC-M03 | NCC-04 | 3 | 1/8 | 4.1 | 2.1 | 10.0 | 0.16 | 0.08 | 0.39 |
| TY3601-M04 | NCC-M04 | NCC-05 | 4 | 5/32 | 5.2 | 2.6 | 12.5 | 0.20 | 0.10 | 0.49 |
| TY3601-M05 | NCC-M05 | NCC-06 | 5 | 3/16 | 6.5 | 3.2 | 16.0 | 0.26 | 0.12 | 0.63 |
| TY3601-07 | - | NCC-07 | - | 7/32 | 9.1 | 3.6 | 26.0 | 0.36 | 0.14 | 1.02 |
| TY3601-M06 | NCC-M06 | - | 6 | - | 8.7 | 3.9 | 22.5 | 0.34 | 0.15 | 0.89 |
| TY3601-08 | - | NCC-08 | - | 1/4 | 8.2 | 4.2 | 19.6 | 0.32 | 0.17 | 0.77 |
| TY3601-M07 | NCC-M07 | NCC-09 | 7 | 9/32 | 9.4 | 4.6 | 23.6 | 0.37 | 0.18 | 0.93 |
| TY3601-M08 | NCC-M08 | NCC-10 | 8 | 5/16 | 10.8 | 5.3 | 28.0 | 0.42 | 0.21 | 1.10 |
| TY3601-12 | - | NCC-12 | - | 3/8 | 13.3 | 6.1 | 36.0 | 0.52 | 0.24 | 1.42 |
| TY3601-M10 | NCC-M10 | - | 10 | - | 13.1 | 6.3 | 34.3 | 0.52 | 0.25 | 1.35 |
| TY3601-M11 | NCC-M11 | NCC-14 | 11 | 7/16 | 17.6 | 7.1 | 51.0 | 0.69 | 0.28 | 2.01 |
| TY3601-M12 | NCC-M12 | - | 12 | - | 17.3 | 7.7 | 46.8 | 0.68 | 0.30 | 1.84 |
| TY3601-16 | - | NCC-16 | - | 1/2 | 17.0 | 8.2 | 43.8 | 0.67 | 0.32 | 1.72 |
| TY3601-M14 | NCC-M14 | NCC-18 | 14 | 9/16 | 18.9 | 9.1 | 49.0 | 0.74 | 0.36 | 1.93 |
Easy to Install.
One Hand Operation.
Releasable Under Load.
8,000 lb Break Strength.
Fits Standard 1? Webbing.
Stays in Place without Shifting.
