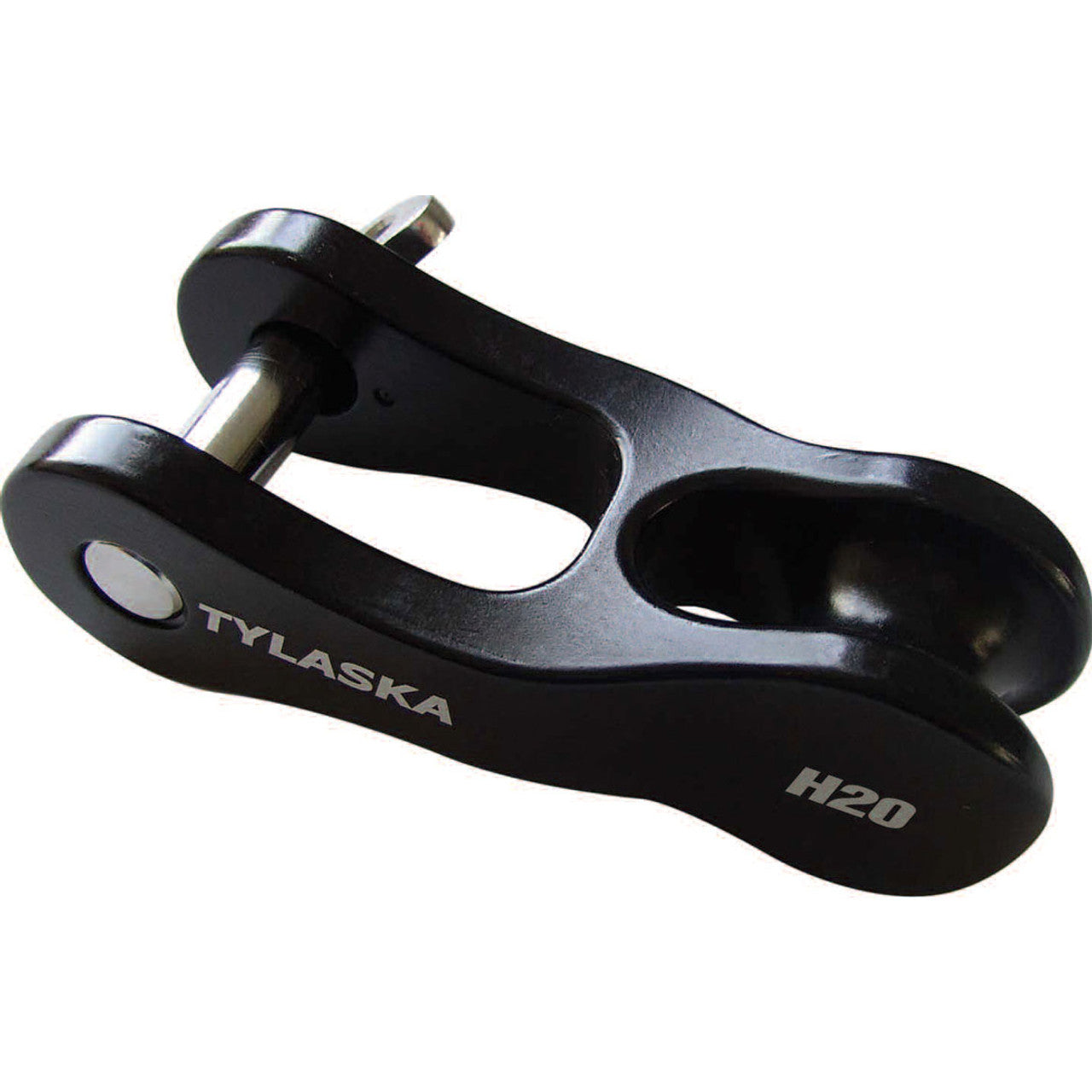

Tylaska H20 Aluminum Halyard Shackle
Shipping and Delivery
Enjoy free shipping on qualifying orders of $145 or more delivered within the 48 contiguous United States. Alaska, Hawaii, Puerto Rico, and other U.S. territories are excluded.
Delivery for qualifying free-shipping orders takes 8 to 10 business days.
Free shipping does not apply to:
- Orders containing only clearance items
- Customized special orders made to your detailed requirements
- Sails and boats
- Long tracks, spinnaker poles, whisker poles, and large tubes
- Oversized or heavy items, including items that require less-than-truckload (LTL) freight shipping
Standard Shipping
- UPS and FedEx Ground: Delivery usually takes 2 to 5 business days for in-stock orders.
- USPS: Allow an additional 3 business days beyond the standard shipping time.
- Saturday delivery: UPS and FedEx deliver on Saturdays only for overnight shipments sent on Friday. Additional charges may apply.
Oversized Items and Freight Shipping
Oversized items, such as whisker poles, spinnaker poles, and tracks longer than 8 feet, require freight shipping. The estimated shipping cost is $500, depending on the destination.
For freight deliveries, provide a commercial address, such as the marina, yacht club, or boatyard where your sailboat is located. The recipient must sign for the shipment upon delivery.
International Orders
International customers are responsible for all applicable import duties, fees, and taxes.
Tylaska H20 Aluminum Halyard Shackle
| Features | American | Metric | Description | H20 Halyard Shackle |
|---|---|---|---|
| Overall Length (A) | 4.84 in | 122.9 mm | |
| Overall Width (B) | 1.833 in | 46.5 mm | |
| Ear Thickness (C ) | 0.416 in | 10.6 mm | |
| Overall Throat Length (D) | 2.50 in | 63.5 mm | |
| Effective Throat Length (E ) | 1.44 in | 36.6 mm | |
| Inside Throat Width (F) | 1 in | 25.4 mm | |
| Thimble Groove Width (G) | 0.75 in | 19.1 mm | |
| Overall Ear Height (H) | 1.58 in | 40.1 mm | |
| Overall Thimble Heigth (I) | 1.499 in | 38.1 mm | |
| Pin Minimun Diameter (J) | 0.5 in | 12..7 mm | |
| Line Size | 1/2 - 5/8 in | 16 mm | |
| Weight | 10.6 oz | 272.7 g | |
| Working Load | 10000 lb | 4545 kg | |
| Breaking Strength | 20000 lb | 9091 kg |
Manufacturer part #: H20
Tylaska's halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17 - 4 PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2 - 1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
| Features | American | Metric | Description | H20 Halyard Shackle |
|---|---|---|---|
| Overall Length (A) | 4.84 in | 122.9 mm | |
| Overall Width (B) | 1.833 in | 46.5 mm | |
| Ear Thickness (C ) | 0.416 in | 10.6 mm | |
| Overall Throat Length (D) | 2.50 in | 63.5 mm | |
| Effective Throat Length (E ) | 1.44 in | 36.6 mm | |
| Inside Throat Width (F) | 1 in | 25.4 mm | |
| Thimble Groove Width (G) | 0.75 in | 19.1 mm | |
| Overall Ear Height (H) | 1.58 in | 40.1 mm | |
| Overall Thimble Heigth (I) | 1.499 in | 38.1 mm | |
| Pin Minimun Diameter (J) | 0.5 in | 12..7 mm | |
| Line Size | 1/2 - 5/8 in | 16 mm | |
| Weight | 10.6 oz | 272.7 g | |
| Working Load | 10000 lb | 4545 kg | |
| Breaking Strength | 20000 lb | 9091 kg |
Manufacturer part #: H20
Tylaska's halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17 - 4 PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2 - 1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
