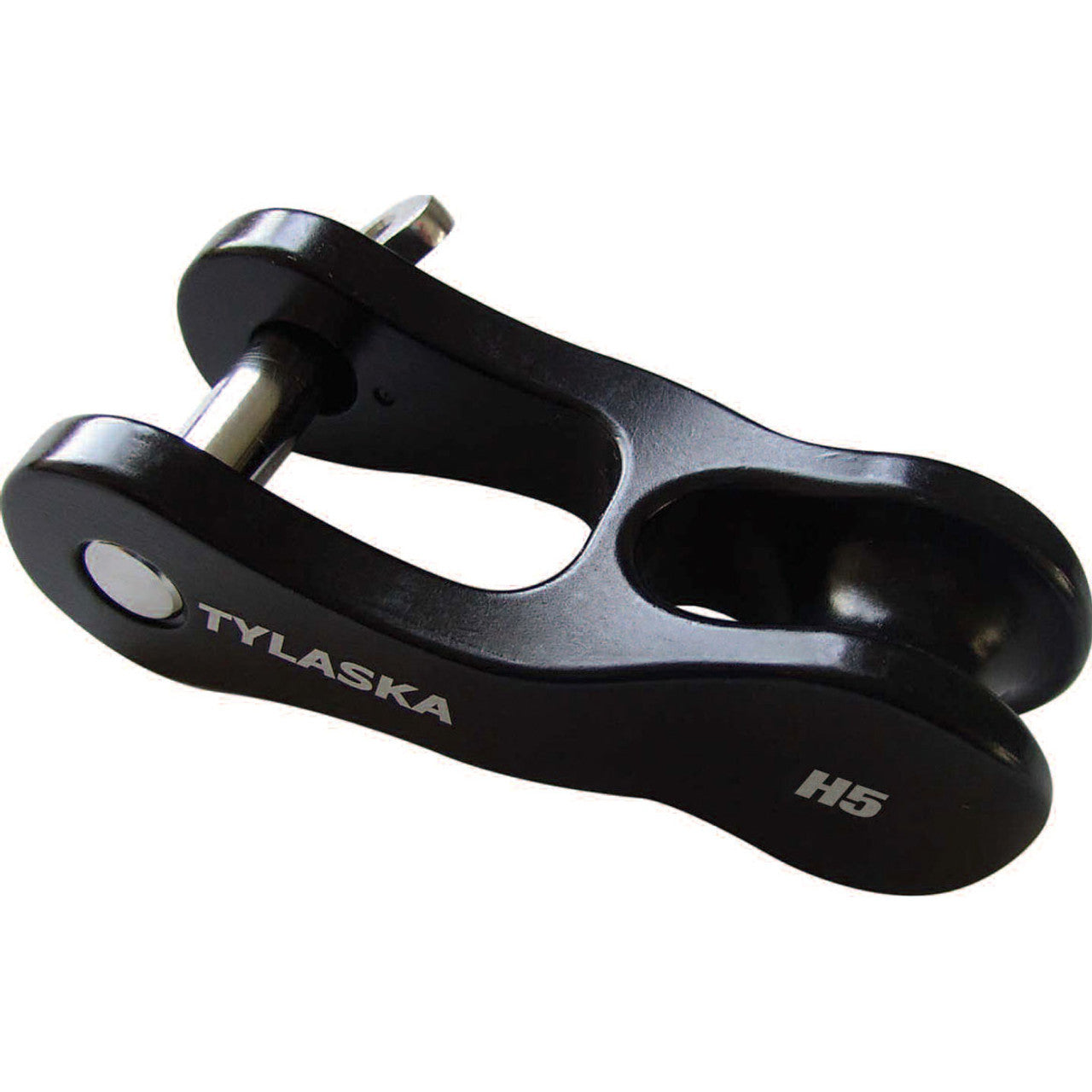

Tylaska H5 Aluminum Halyard Shackle
Sale price
$117.21
Regular price
$156.28
Unit price
Unavailable
Manufacturer part #: H5
Manufacturer part #: H5
Tylaska's halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17 - 4 PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2 - 1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
| Features | American | Metric | Description | H5 Halyard Shackle |
|---|---|---|---|
| Overall Length (A) | 2.57 in | 65.3 mm | |
| Overall Width (B) | 1 in | 25.4 mm | |
| Ear Thickness (C ) | 0.183 in | 4.6 mm | |
| Overall Throat Length (D) | 1.40 in | 35.6 mm | |
| Effective Throat Length (E ) | 0.91 in | 23.1 mm | |
| Inside Throat Width (F) | 0.64 in | 16.1 mm | |
| Thimble Groove Width (G) | 0.375 in | 9.5 mm | |
| Overall Ear Height (H) | 0.75 in | 19.1 mm | |
| Overall Thimble Heigth (I) | 0.75 in | 19.1 mm | |
| Pin Minimun Diameter (J) | 0.26 in | 6.6 mm | |
| Line Size | 5/16 in | 8 mm | |
| Weight | 1.4 oz | 36.9 g | |
| Working Load | 2500 lb | 1136 kg | |
| Breaking Strength | 5000 lb | 2273 kg |
Manufacturer part #: H5
Tylaska's halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17 - 4 PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2 - 1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
