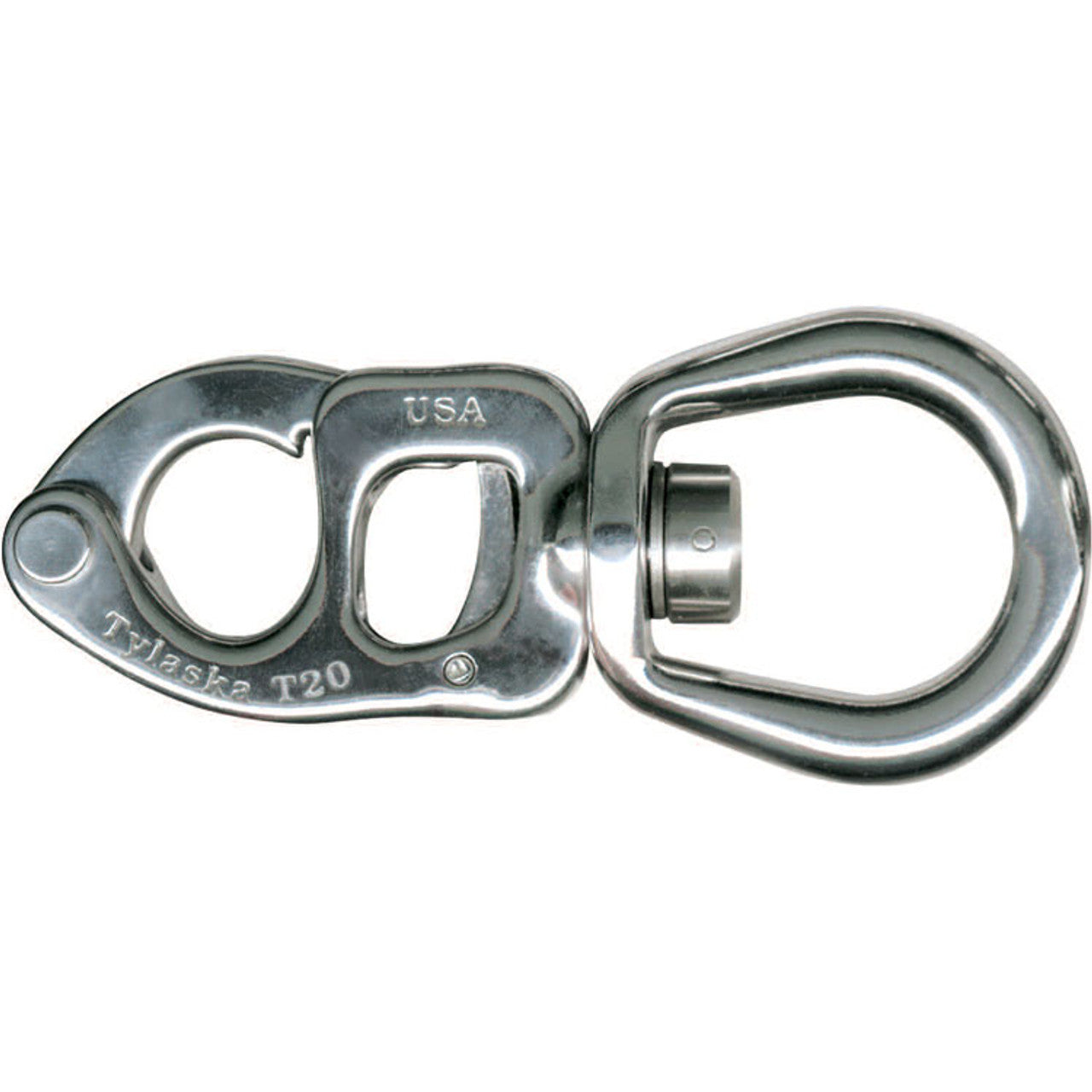

Tylaska T20 Snap Shackle Large Bail
Sale price
$312.52
Regular price
$416.69
Unit price
Unavailable
Manufacturer part #: T20 LB
Recommended Applications: 40 - 70 ft Boats.
Manufacturer part #: T20 LB
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
SB - Standard Bails
Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails
Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails
Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
| Features | American | Metric | Description | T20 Large Bail Snap Shackle |
|---|---|---|---|
| A | 31/32 in | 24.6 mm | |
| B | 15/16 in | 23.8 mm | |
| C | 1 3/8 in | 34.9 mm | |
| D | 1 1/2 in | 38.1 mm | |
| E | 5 9/16 in | 141.3 mm | |
| Thickness | 0.57 in | 14.5 mm | |
| Weight | 14.3 oz | 406 g | |
| Working Load | 10000 lb | 4545 kg | |
| Breaking Strength | 20000 lb | 9091 kg |
Manufacturer part #: T20 LB
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
SB - Standard Bails
Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails
Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails
Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
