Tylaska | SKU:
TY1020-S

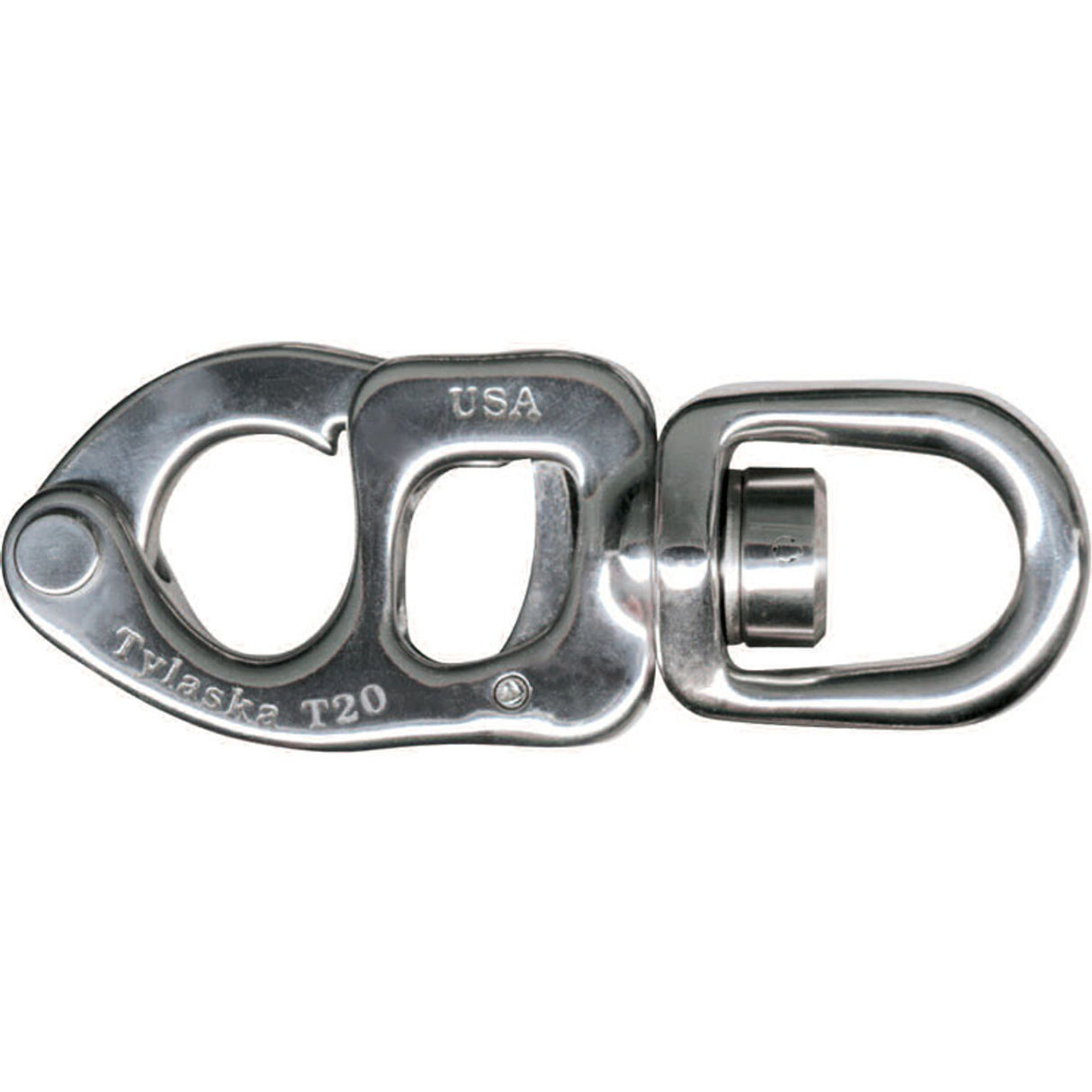

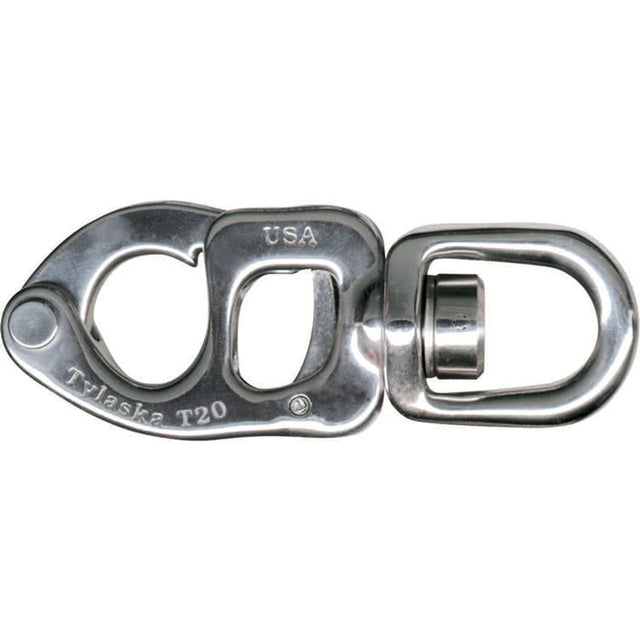

Tylaska T20 Snap Shackle Standard Bail
Sale price
$297.65
Regular price
$396.86
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Tylaska T20 Snap Shackle Standard Bail
Sale price
$297.65
Regular price
$396.86
Unit price
Unavailable
Manufacturer part #: T20 SB
Recommended Applications: 40 - 70 ft Boats.
Manufacturer part #: T20 SB
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
SB - Standard Bails
Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails
Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails
Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
| Features | American | Metric | Description | T20 Standard Bail Snap Shackle |
|---|---|---|---|
| A | 31/32 in | 24.6 mm | |
| B | 15/16 in | 23.8 mm | |
| C | 15/16 in | 23.8 mm | |
| D | 31/32 in | 24.6 mm | |
| E | 5 in | 127 mm | |
| Thickness | 0.57 in | 14.5 mm | |
| Weight | 11.9 oz | 338 g | |
| Working Load | 10000 lb | 4545 kg | |
| Breaking Strength | 20000 lb | 9091 kg |
Manufacturer part #: T20 SB
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
SB - Standard Bails
Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails
Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails
Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
