Tylaska | SKU:
TY1030-S

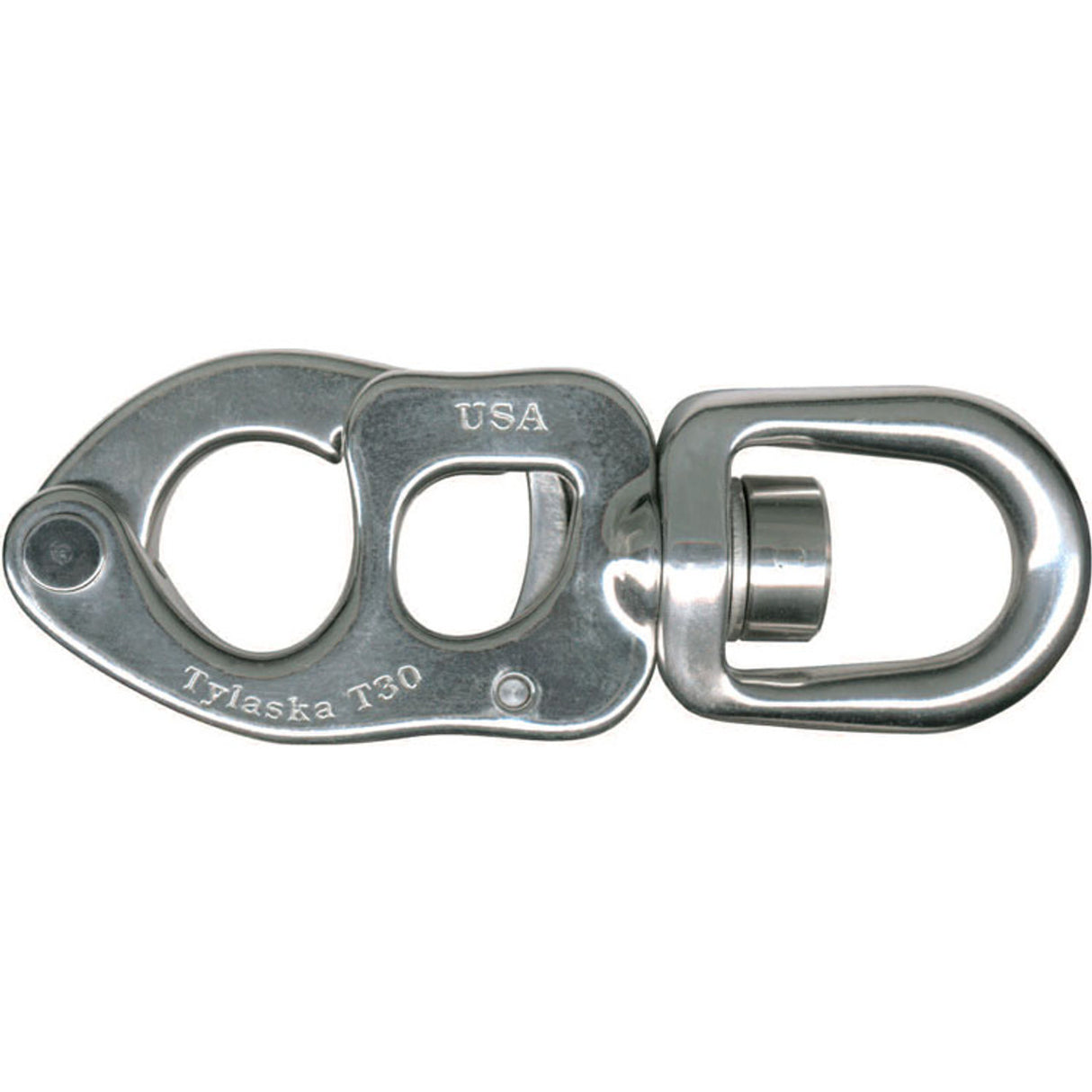

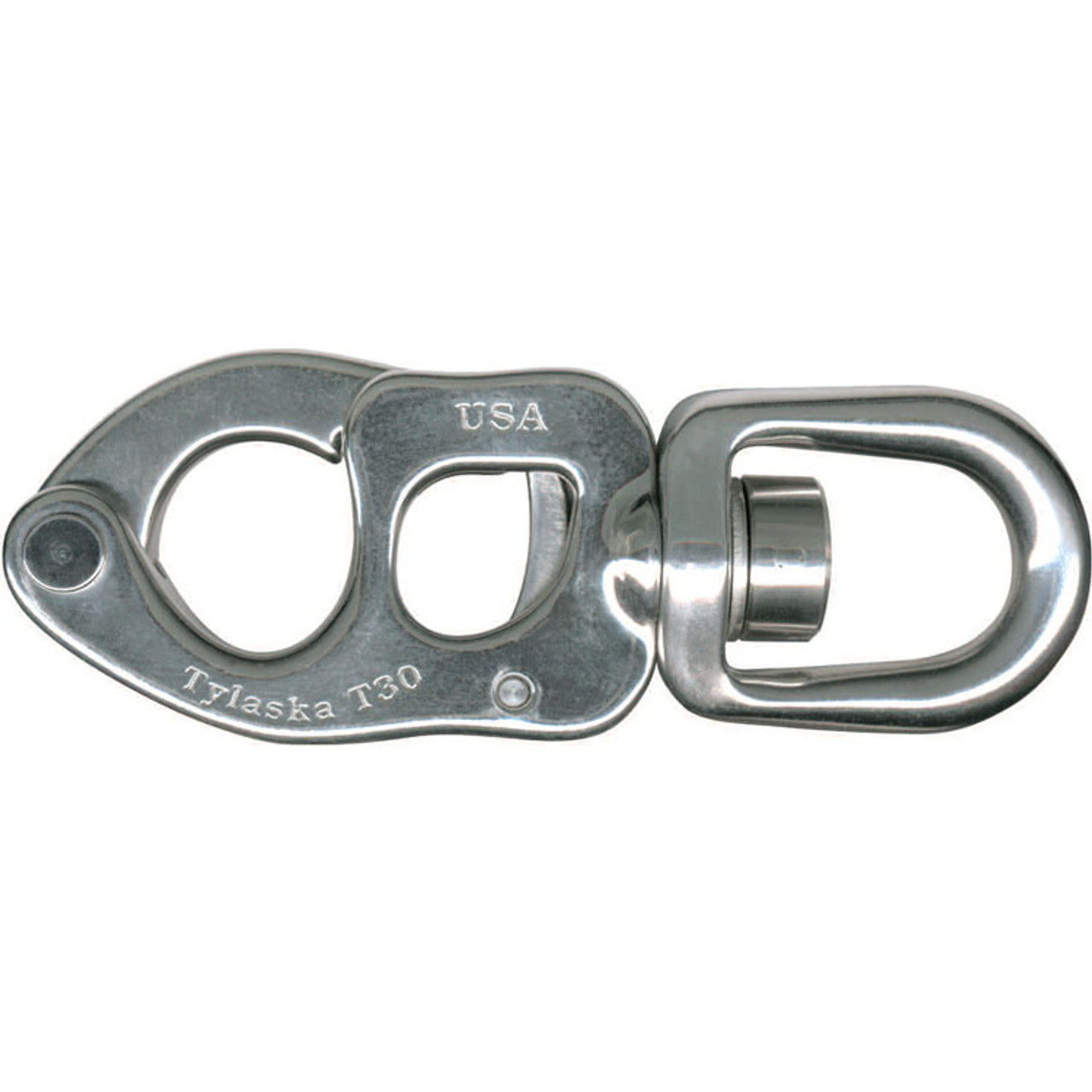

Tylaska T30 Snap Shackle Standard Bail
Sale price
$542.81
Regular price
$723.75
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Tylaska T30 Snap Shackle Standard Bail
Sale price
$542.81
Regular price
$723.75
Unit price
Unavailable
Manufacturer part #: T30 SB
Recommended Applications: 60 - 80 ft Boats.
Manufacturer part #: T30 SB
Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.
SB - Standard Bails
Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails
Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails
Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
| Features | American | Metric | Description | T30 Standard Bail Snap Shackle |
|---|---|---|---|
| A | 1 1/4 in | 31.8 mm | |
| B | 1 1/8 in | 28.6 mm | |
| C | 1 1/8 in | 28.6 mm | |
| D | 1 1/4 in | 31.8 mm | |
| E | 6 3/8 in | 161.9 mm | |
| Thickness | 0.78 in | 19.8 mm | |
| Weight | 26.4 oz | 636 g | |
| Working Load | 15000 lb | 6818 kg | |
| Breaking Strength | 30000 lb | 13636 kg |
Manufacturer part #: T30 SB
Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.
SB - Standard Bails
Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails
Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails
Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
