Wichard  |  SKU: WIC1422W

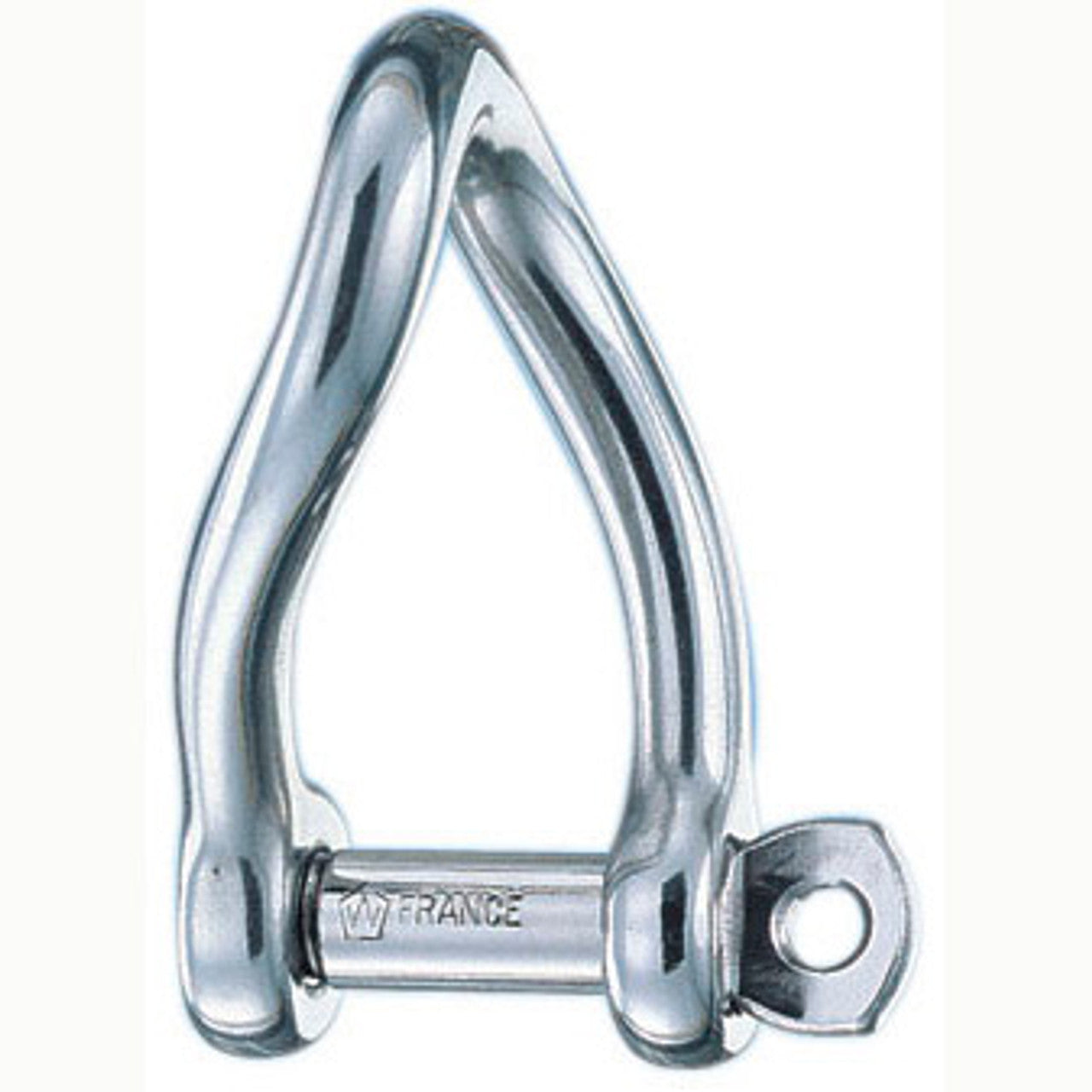

Wichard 3/16 Captive Twisted Shackle

Sale price $29.54 Regular price $34.75

Pickup available at 1830 East Interstate 30

Usually ready in 24 hours

DELIVERY AND RETURN INFO
Manufacturer part #: 1422

Features American Metric
Description Captive Pin Twisted Shackles
A 1 7/16 in 37 mm
B 3/8 in 10 mm
C 1/4 in 6 mm
Ø 3/16 in 5 mm
Weight 0.81 oz 23 g
Working Load 1058 lb 480 kg
Breaking Load 3300 lb 1500 kg


Manufacturer part #: 1422

  • Captive pin twisted shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads
  • The shackle can not be lost
  • Single handed operation for more safety
  • Applications
  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases
  • Material
  • Grade 316L stainless steel
