Wichard | SKU:
WIC1222W

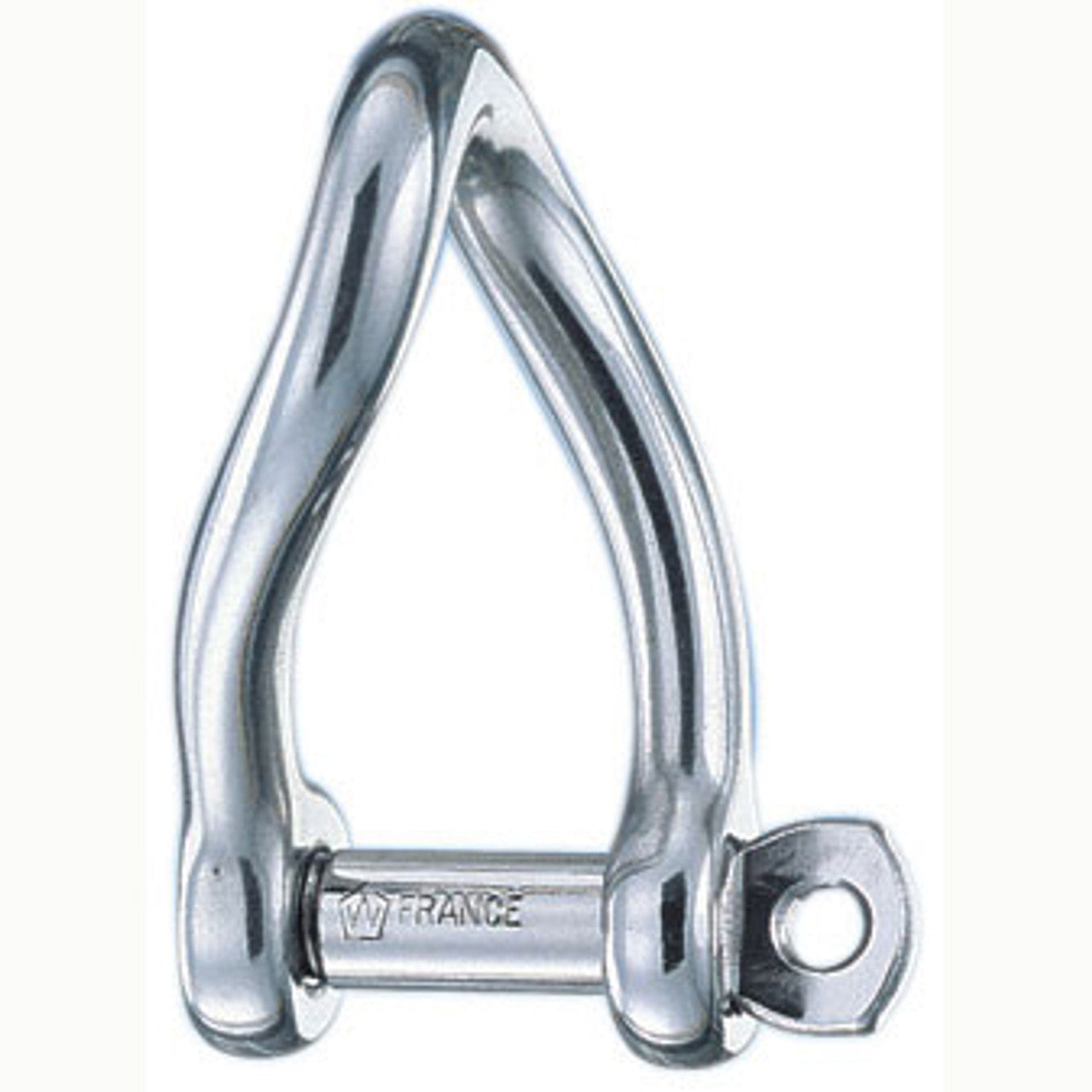

Wichard 3/16 Self Locking Twisted Shackle
Sale price
$21.38
Regular price
$25.15
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Manufacturer part #: 1222
Manufacturer part #: 1222
Self-locking long shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations, no risks of loose due to vibrations, outstanding working and breaking loads
Applications
Perfect for application where a 90° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Material
Grade 316L stainless steel
| Features | American | Metric | |
|---|---|---|---|
| Description | Self Locking Twisted Shackle | ||
| A | 1 1/32 in | 26 mm | |
| B | 13/32 in | 10 mm | |
| Ø | 13/64 in | 5 mm | |
| Working Load | 1058 lb | 480 kg | |
| Breaking Load | 2425 lb | 1100 kg | |
| Weight | 0.5 oz | 16 g | |
Manufacturer part #: 1222
Self-locking long shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations, no risks of loose due to vibrations, outstanding working and breaking loads
Applications
