Wichard | SKU:
WIC91434W

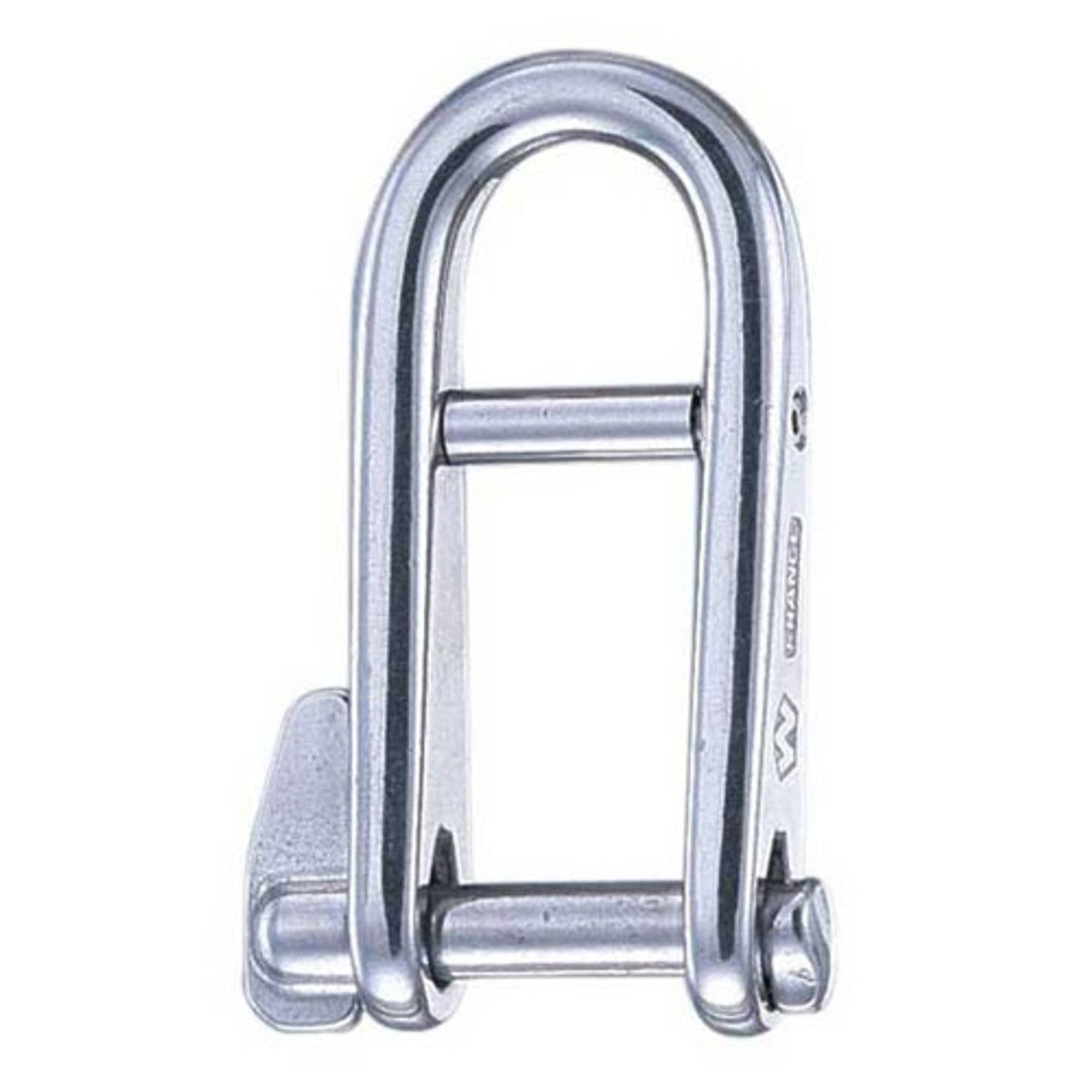

Wichard 5/16 Key Pin HR Shackle with Bar
Sale price
$103.53
Regular price
$121.80
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Wichard 5/16 Key Pin HR Shackle with Bar
Sale price
$103.53
Regular price
$121.80
Unit price
Manufacturer part #: 91434
Manufacturer part #: 91434
HR Key pin shackle with bar forged in grade 17.4 Ph stainless steel Halyard or thimble are attached to the eye, no risk to lose the shackle Opening and closing is done simply by rotating the pin half a turn No risk to lose the pin as it remains attached High working and breaking loads Designed to support high loads Applications
To be used hor high loads applications Perfect product for halyards or applications where the shackle has to be open often To be used with a thimble or a rope MaterialHR stainless steel 17.4 PH
| Features | American | Metric |
|---|---|---|
| Description | Key Pin HR Shackle with Bar | |
| A | 2 5/16 in | 59 mm |
| B | 13/16 in | 21 mm |
| D | 13/16 in | 20 mm |
| Ø | 5/16 in | 8 mm |
| Weight | 4.33 oz | 123 g |
| Working Load | 2116 lb | 960 kg |
| Breaking Load | 7710 lb | 3500 kg |
Manufacturer part #: 91434
