Wichard | SKU:
WIC2857W

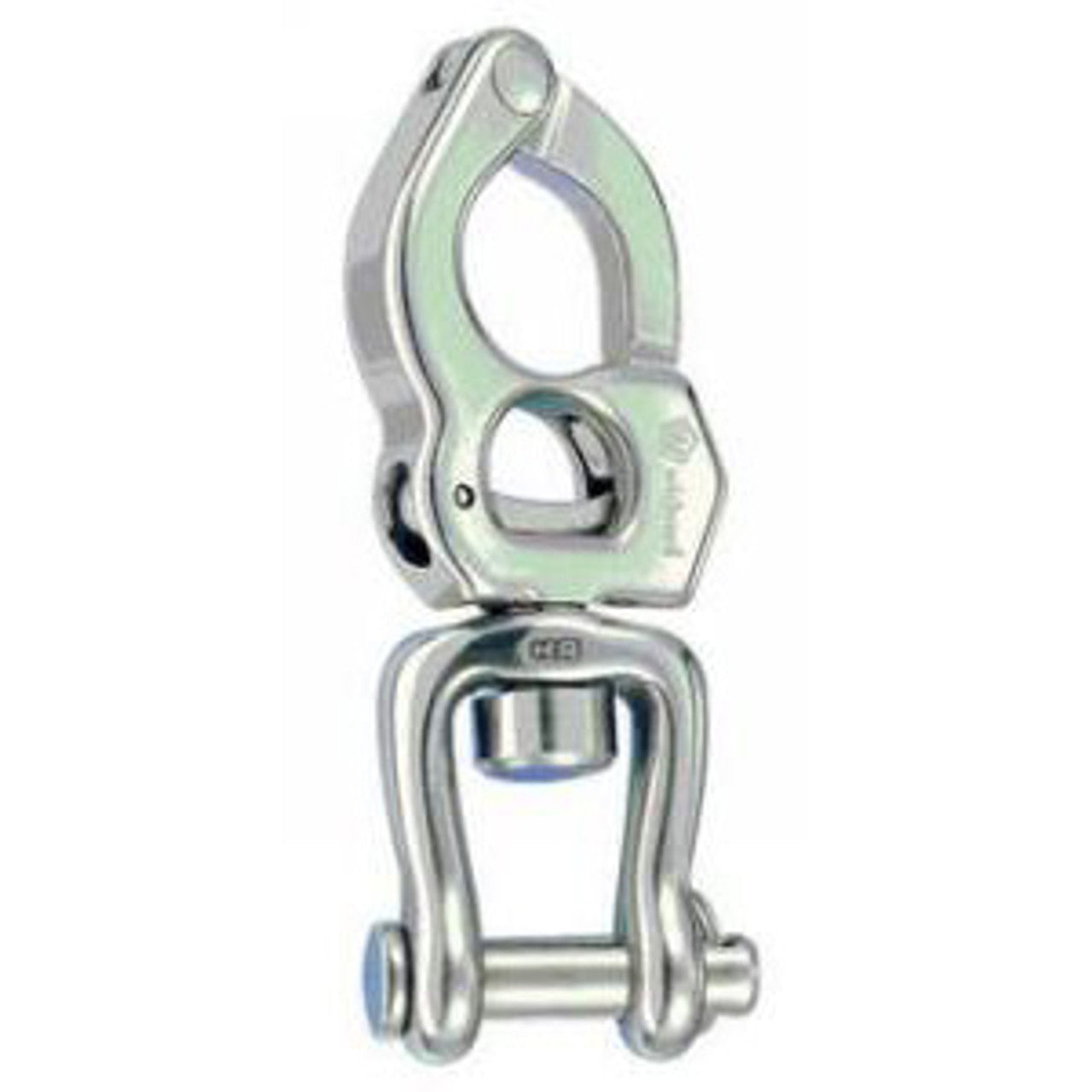

Wichard 5 5/16 Trigger Snap Swivel Clevis
Sale price
$402.90
Regular price
$474.00
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Manufacturer part #: 2857
Manufacturer part #: 2857
HR forged trigger snap shackle with swivel shackle The opening is made by hand (low load) or by using a release fid Allows to attach a non spliced sheet Free rotation of the snap shackle thanks to the swivel Outstanding working and breaking loads Applications
Trigger snap shackle requiring no splicing sheet Many fastening applications: furling systems, deck fitting, etc Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Trigger Snap Shackle Swivel Shackle | ||
| Length | 5 5/16 in | 135 mm | |
| A | 1 1/16 in | 27 mm | |
| B | 3/4 in | 19 mm | |
| C | 45/64 in | 18 mm | |
| D | 7/16 in | 11 mm | |
| Weight | 13.7 oz | 390 g | |
| Working Load | 9171 lb | 4160 kg | |
| Breaking Load | 17636 lb | 8000 kg | |
Manufacturer part #: 2857
