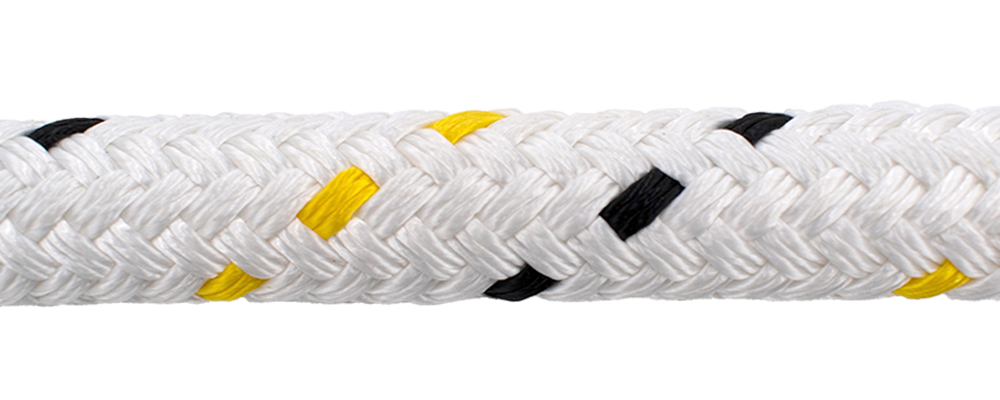

Yale Maxibraid Plus

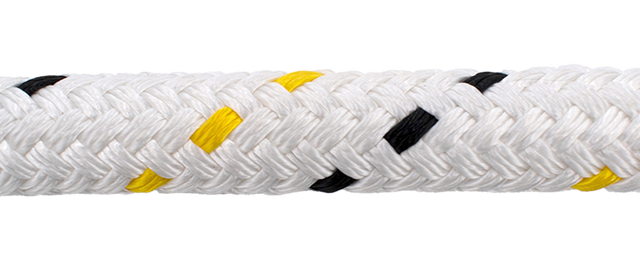

Maxibraid Plus is a double-braided rope constructed of an inner load-bearing core of High Modulus Polyethylene (HMPE). The polyester outer sleeve is slightly thicker than Ultrex Plus, which would provide more abrasion resistance in high-wear applications
- Extraordinary strength, low elongation, and sleeve toughness deliver outstanding control
- Expertly engineered strength and elasticity specifications
- Superior wear life – 100% of load bearing capacity accomplished by the core alone
The HMPE core is coated with Yale’s Maxijacket coating prior to being over-braided, for added toughness. Yale has developed a special splice for larger sizes (3/4″ and larger), which incorporates a tucked core yet is covered as a conventional double braid. The advantage to this splice is no movement of the eye in service and a greatly shortened internal tail, making the rope more flexible and less prone to being damaged adjacent to the eye.
| Diameter (Inches) | Weight (Lbs/100f) | Average Spliced Break Strength *(Lbs) | Minimum Spliced Break Strength *(Lbs) | Maximum Working Load 5:1 **(Lbs) |
| 1/4 | 2.1 | 5,400 | 4,860 | 1,080 |
| 5/16 | 3.2 | 10,270 | 9,243 | 2,054 |
| 3/8 | 4.3 | 13,180 | 11,862 | 2,636 |
| 7/16 | 5.5 | 16,150 | 14,535 | 3,230 |
| 1/2 | 7.3 | 21,000 | 18,900 | 4,200 |
| 9/16 | 9.1 | 28,000 | 25,200 | 5,600 |
| 5/8 | 11.0 | 34,000 | 30,600 | 6,800 |
| 3/4 | 14.2 | 44,000 | 39,600 | 8,800 |
| 7/8 | 21.3 | 63,000 | 56,700 | 12,600 |
| 1 | 25.8 | 75,000 | 67,500 | 15,000 |
| 1-1/8 | 32.2 | 100,000 | 90,000 | 20,000 |
| 1-1/4 | 37.9 | 123,000 | 100,700 | 24,600 |
